Same model may have multiple batches, images only for reference.

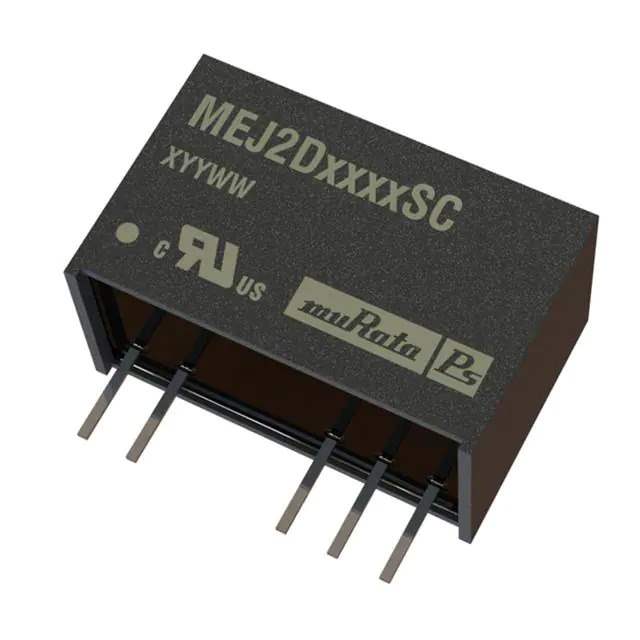

MEJ2D0505SC Real Image
Same model may have multiple batches, images only for reference.

MEJ2D0505SC

Part No MEJ2D0505SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 2W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series MEJ2 (2W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 200mA, 200mA
Power (Watts) 2 W
Voltage - Isolation 5.2 kV
Applications ITE (Commercial), Medical
Temperature Range - Operating -40°C ~ 85°C
Efficiency 76%
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Size / Dimension 0.77" L x 0.39" W x 0.50" H (19.7mm x 10.0mm x 12.7mm)
Base Product Number MEJ2D05
Standard Package 25 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 847503-MEJ2D0505SC
Ultra Librarian 3D Model Ultra Librarian MEJ2D0505SC CAD Model

Description

The MEJ2D0505SC is a 2W isolated module DC-DC converter from Murata Power Solutions Inc.

  • Series: MEJ2
  • Application: Power supplies in board mount applications
  • Outputs: Two
  • Output Current: 200mA each
  • Input Voltage: 4.5V to 5.5V
  • Output Voltage: 5V and -5V
  • Voltage Isolation: 5.2 kV
  • Efficiency: 76%
  • Package: 7-SIP module with 5 leads
  • Temperature Range: -40°C to 85°C
  • Applications: ITE (Commercial) and Medical
  • Packaging: Tube (25 pcs)
