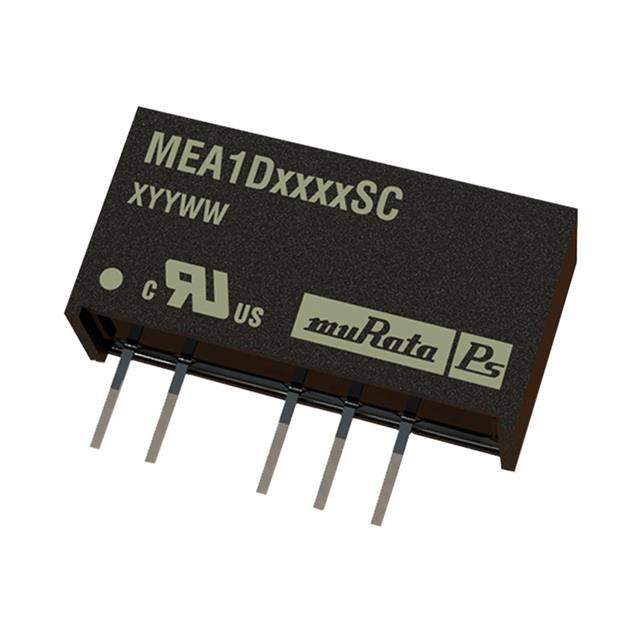

MEA1D0515SC Real Image
Same model may have multiple batches, images only for reference.

MEA1D0515SC

Part No MEA1D0515SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description 1kVDC Isolated 1W Dual Output DC/DC Converters | DC DC CONVERTER +/-15V 1W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Minimum) 4.5V
Voltage - Input (Maximum) 5.5V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Maximum) 33mA, 33mA
Power (W) 1W
Voltage - Isolation 1kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 87%
Mounting Style Through Hole
Manufacturer Package 6-SIP Module, 5 Leads
Parts Dimension 0.77" L x 0.24" W x 0.40" H (19.6mm x 6.1mm x 10.2mm)
Manufacturer Pack Quantity 25
MSL Level 1 (Unlimited)
Win Source Part Number 1221688-MEA1D0515SC
Manufacturer Homepage www.murata.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MEA1D0515SC CAD Model

Description

The Murata Power Solutions Inc. Isolated Module is a high-quality power supply that is designed for use in ITE (Commercial) applications.

  • Manufacturer: Murata Power Solutions Inc.
  • Application: ITE (Commercial)
  • Voltage-Isolation: 1kV
  • Outputs: 15V and -15V
  • Mounting: Through-hole
  • Efficiency: 87%
  • Current Output: 33mA
  • Power Rating: 1W
  • Voltage Input: 4.5V to 5.5V
  • Temperature Range: -40°C to 85°C
  • Package: 6-SIP Module with 5 leads
  • Manufacturer Pack Quantity: 25
