Same model may have multiple batches, images only for reference.

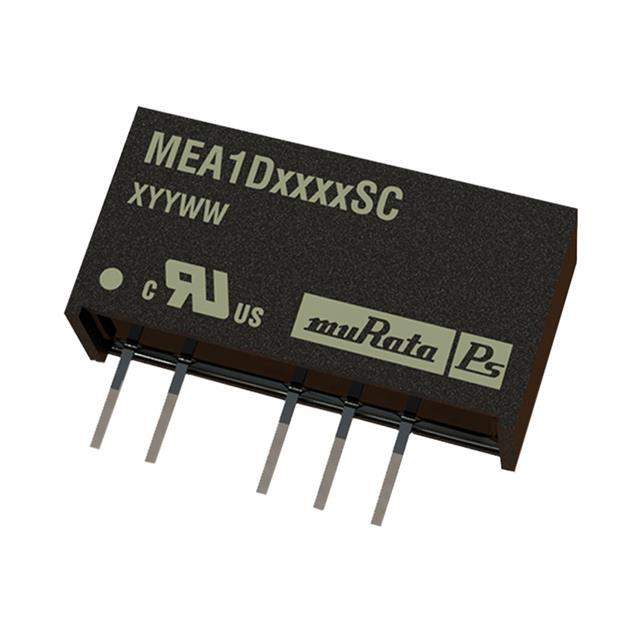

MEA1D0509SC Real Image
Same model may have multiple batches, images only for reference.

MEA1D0509SC

Part No MEA1D0509SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description 1kVDC Isolated 1W Dual Output DC/DC Converters | DC DC CONVERTER +/-9V 1W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Minimum) 4.5V
Voltage - Input (Maximum) 5.5V
Voltage - Output 1 9V
Voltage - Output 2 -9V
Current - Output (Maximum) 56mA, 56mA
Power (W) 1W
Voltage - Isolation 1kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 86.5%
Mounting Style Through Hole
Manufacturer Package 7-SIP Module, 5 Leads
Parts Dimension 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm)
Manufacturer Pack Quantity 25
MSL Level 1 (Unlimited)
Win Source Part Number 1221686-MEA1D0509SC
Manufacturer Homepage www.murata.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MEA1D0509SC CAD Model

Description

The Murata Power Solutions Inc. Isolated Module is a high-quality power supply module suitable for ITE (Commercial) applications.

  • Outputs: 2 outputs of 9V and -9V voltage
  • Efficiency: 86.5%
  • Package: 7-SIP module, 5 leads
  • Mounting: Through Hole
  • Voltage Isolation: 1kV
  • Maximum Output Current: 56mA, 56mA
  • Power Rating: 1W
  • Operating Temperature: -40°C to 85°C
  • Input Voltage Range: 4.5V to 5.5V
  • Supply and demand status: Limited
  • Manufacturer Pack Quantity: 25
  • Application: Power supplies - board mount
