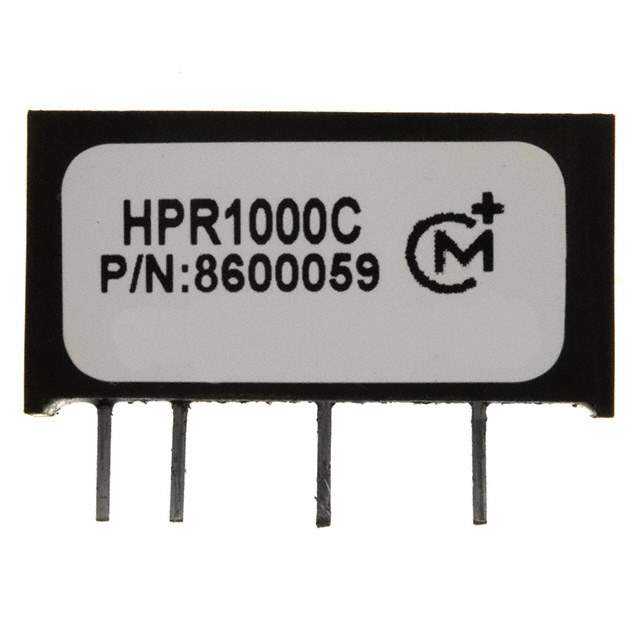

Same model may have multiple batches, images only for reference.

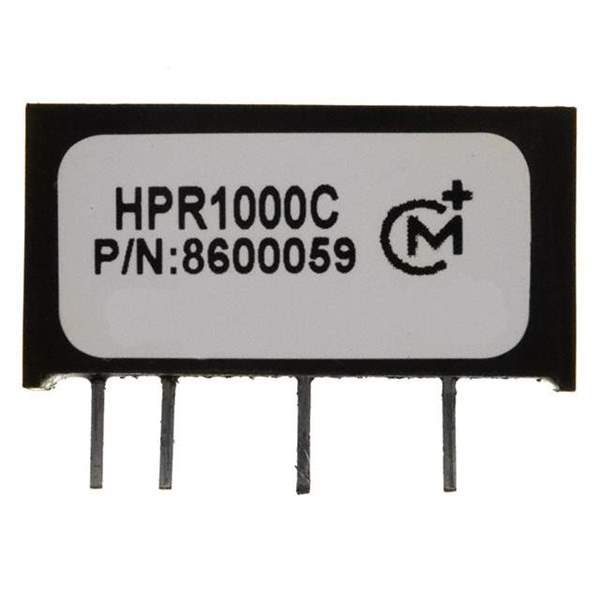

HPR1000C Real Image
Same model may have multiple batches, images only for reference.

HPR1000C

Part No HPR1000C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description 1.0 WATT UNREGULATED, SIP DC/DC CONVERTER
Datasheet
HPR1000C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Series HPR10xxC
Packaging Tube
Part Status Obsolete(EOL)
Type Isolated Module
Number of Outputs 1
Input Voltage MIN 4.5V
Voltage Input MAX 5.5V
Voltage - Output 1 5V
Current - Output (Maximum) 200mA
Power (Watts) 1W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Operating Temperature Range -25°C ~ 65°C
Efficiency 68%
Mounting Style Through Hole
Package 7-SIP Module, 5 Leads
Size 0.77" L x 0.24" W x 0.40" H (19.6mm x 6.1mm x 10.2mm)
Win Source Part Number 1181695-HPR1000C
Manufacturer Homepage www.murata-ps.com
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Power Management
Family Name HPR1000
Introduction Date August 15, 2007
Country of Origin China, United States of America
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian HPR1000C CAD Model

Description

The HPR1000C is a 1W isolated module from Murata Power Solutions Inc.

  • Power: 1W
  • Packaging: 7-SIP
  • Leads: 5
  • Mounting: Through-Hole
  • Operating Temperature: -25°C to 65°C
  • Voltage Isolation: 1kV (1000V)
  • Status: Obsolete
  • Application: ITE (Commercial)
  • Size: 0.77" L x 0.24" W x 0.40" H (19.6mm x 6.1mm x 10.2mm)
  • Efficiency: 68%
  • Output: Single
  • Voltage Output: 5V
  • Maximum Output Current: 200mA
  • Family: HPR1000
  • Category: Power Supplies - Board Mount
  • Input Voltage: 4.5V to 5.5V
  • Alternative Parts: VIBLSD1-S5-S5-SIP, PCN1-S5-S5-S, and PCM1-S5-S5-SA
  • Introduction Date: August 15, 2007
  • EOL Date: Obsolete
