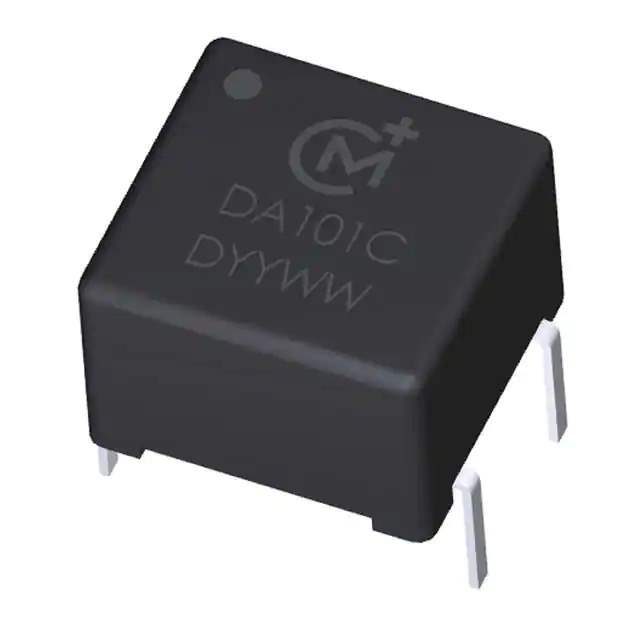

DA101C Real Image
Same model may have multiple batches, images only for reference.

DA101C

Part No DA101C
Manufacturer Murata Power Solutions Inc.
Catalog Pulse Transformers
Description DIGITAL AUDIO TX 1:1 1.5MH DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Murata Power Solutions Inc.
Series DA100
Package Box
Product Status Active
Inductance 2.06mH
ET (Volt-Time) 15VµS
Mounting Type Through Hole
Size / Dimension 0.354" L x 0.375" W (9.00mm x 9.52mm)
Height - Seated (Max) 0.250" (6.35mm)
Temperature Range - Operating 0°C ~ 70°C
Base Product Number DA101
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 583611-DA101C
Ultra Librarian 3D Model Ultra Librarian DA101C CAD Model

Description

The DA101C is a pulse transformer from Murata Power Solutions Inc. It is part of the DA100 series and is designed for use in transformers.

  • Size: 0.354" L x 0.375" W (9.00mm x 9.52mm)
  • Seated Height: 0.250" (6.35mm)
  • Mounting Type: Through-Hole
  • Operating Temperature: 0°C to 70°C
  • Inductance: 2.06mH
  • ET (Volt-Time): 15VμS
  • Standard Package: 50 pcs
  • REACH Regulation: Unaffected
  • ECCN: EAR99
