Same model may have multiple batches, images only for reference.

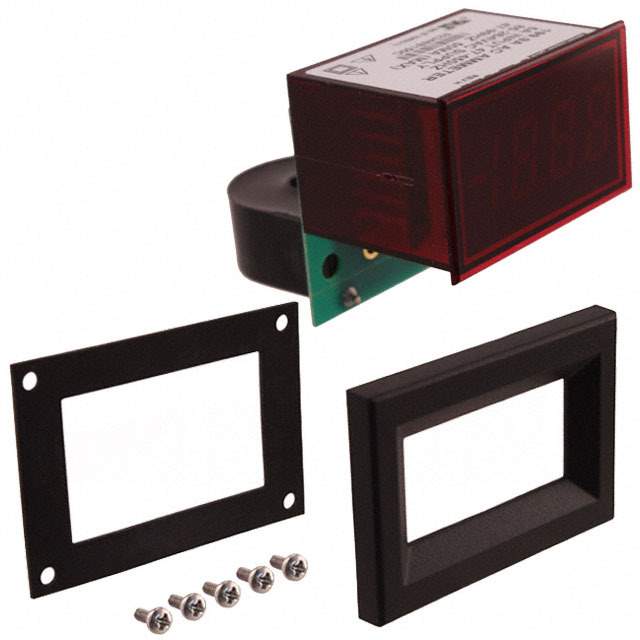

ACA5-20PC-2-AC1-RL-C Real Image
Same model may have multiple batches, images only for reference.

ACA5-20PC-2-AC1-RL-C

Part No ACA5-20PC-2-AC1-RL-C
Manufacturer Murata Power Solutions Inc.
Catalog Panel Meters
Description AMMETER 0-75A LED PANEL MOUNT / Current (Ammeter) LED - Red Characters Display Panel Mount - Bezel
Datasheet
ACA5-20PC-2-AC1-RL-C Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Industrial Automation and Controls>Panel Meters
Mfr Murata Power Solutions Inc.
Series ACA5-20PC
Package Box
Product Status Obsolete
Type Current (Ammeter)
Measuring Range 0 ~ 75A
Display Type LED - Red Characters
Number Of Characters Per Row 3.5
Display Characters - Height 0.370" (9.40mm)
Voltage - Supply 85 ~ 264VAC
Panel Cutout Dimensions Rectangular - 33.93mm x 21.29mm
Mounting Type Panel Mount - Bezel
Termination Style Screw Terminal
Features Built In Current Transformer (Secondary)
Temperature Range - Operating 0°C ~ 60°C
Weight 0.079 lb (35.83 g)
Base Product Number ACA5-20PC
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 9030.33.3800
Standard Package 12
Win Source Part Number 1196713-ACA5-20PC-2-AC1-RL-C
Ultra Librarian 3D Model Ultra Librarian ACA5-20PC-2-AC1-RL-C CAD Model

Description

The ACA5-20PC is a current (ammeter) panel meter that is designed for use in various industrial automation and control applications manufactured by an unspecified manufacturer.

  • Termination Style: Screw Terminal
  • Current Transformer: Built-in (Secondary)
  • Package: Box
  • Standard Package: 12
  • Panel Cutout Dimension: 33.93mm x 21.29mm
  • Weight: 0.079 lb (35.83 g)
  • Measuring Range: 0 ~ 75A
  • Voltage Supply Range: 85 ~ 264VAC
  • Temperature Range: 0°C ~ 60°C
  • Display: LED, Red Characters
