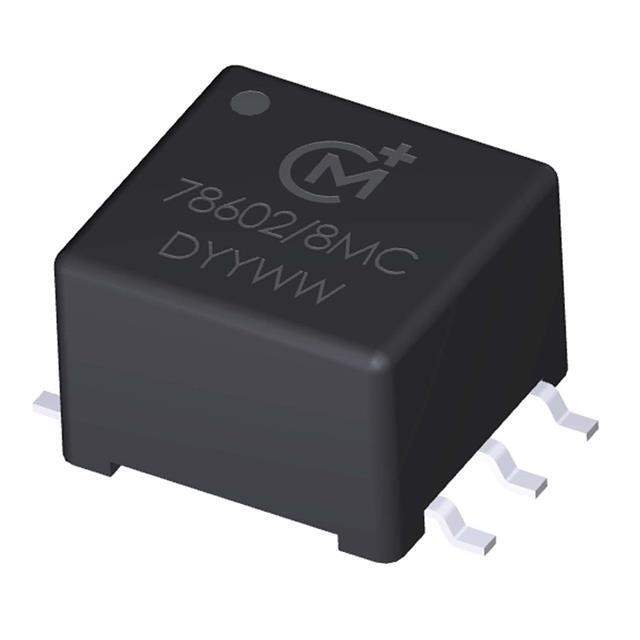

78602/9MC-R Real Image
Same model may have multiple batches, images only for reference.

78602/9MC-R

Part No 78602/9MC-R
Manufacturer Murata Power Solutions Inc.
Catalog Pulse Transformers
Description PULSE XFMR 1:1:1 10MH / 10mH General Purpose Pulse Transformer 1:1:1 Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Murata Power Solutions Inc.
Series 786
Package Tape & Reel (TR)
Product Status Not For New Designs
Transformer Type General Purpose
Inductance 10mH
ET (Volt-Time) 56VµS
Mounting SMD (SMT)
Dimension 0.375" L x 0.354" W (9.52mm x 9.00mm)
Height - Seated (Max) 0.250" (6.35mm)
Temperature Range - Operating 0°C ~ 70°C
Base Product Number 78602
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Standard Package 500
Win Source Part Number 999989-78602/9MC-R
Ultra Librarian 3D Model Ultra Librarian 78602/9MC-R CAD Model

Description

The Murata Power Solutions Inc. 78602/9MC-R is a general purpose pulse transformer that comes in a tape & reel (TR) package.

  • Package: Tape & Reel (TR)
  • Inductance: 10mH
  • Height: 0.250" (6.35mm)
  • Operating Temperature: 0°C to 70°C
  • Dimension: 0.375" L x 0.354" W (9.52mm x 9.00mm)
  • ET (Volt-Time): 56VµS
