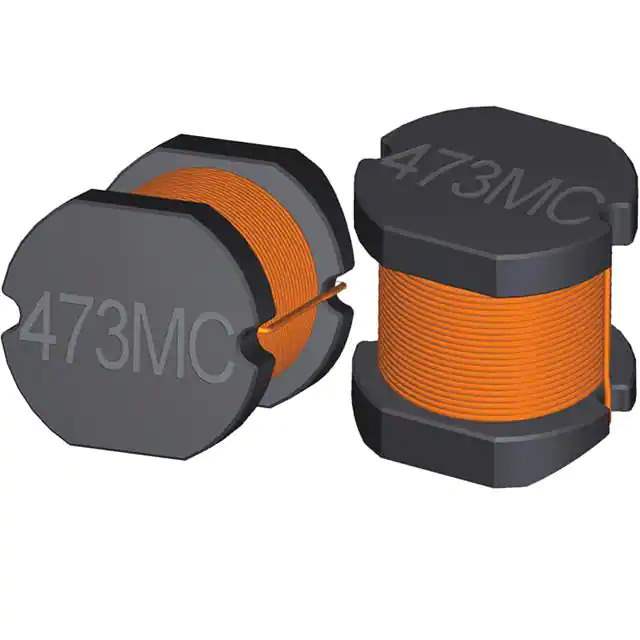

22R686MC Real Image
Same model may have multiple batches, images only for reference.

22R686MC

Part No 22R686MC
Manufacturer Murata Power Solutions Inc.
Catalog Fixed Inductors
Description FIXED IND 68MH 26MA 242 OHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Murata Power Solutions Inc.
Series 2200RM
Package Tape & Reel
Product Status Active
Type Wirewound
Inductance 68 mH
Tolerance ±10%
Current Rating (Amps) 26 mA
Shielding Unshielded
DC Resistance (DCR) 242Ohm Max
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 1 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max) 0.311" (7.90mm)
Base Product Number 22R
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 850083-22R686MC
Ultra Librarian 3D Model Ultra Librarian 22R686MC CAD Model

Description

The 2200RM is a fixed inductor from Murata Power Solutions Inc. Bold: 2200RM and Murata Power Solutions Inc..

  • Series: 2200RM
  • Type: Wirewound
  • Size: 0.307" L x 0.276" W (7.80mm x 7.00mm)
  • Inductance: 68 mH
  • Height Seated: 0.311" (7.90mm)
  • Packaging: Tape & Reel
  • Standard Package: 500 pcs
  • Shielding: Unshielded
  • Tolerance: ±10%
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C to 85°C
