Same model may have multiple batches, images only for reference.

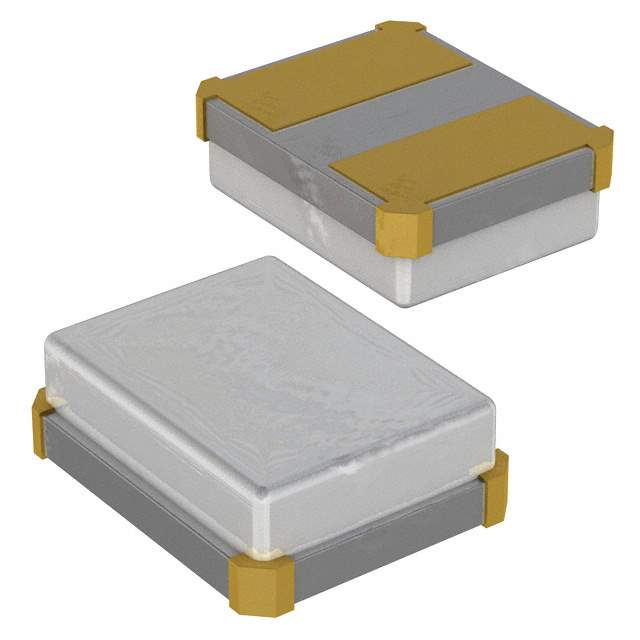

XRCHA20M000F0A01R0 Real Image
Same model may have multiple batches, images only for reference.

XRCHA20M000F0A01R0

Part No XRCHA20M000F0A01R0
Manufacturer Murata Electronics North America
Catalog Crystals
Description CRYSTAL 20.0000MHZ 8PF SMD / 20 MHz ±100ppm Crystal 8pF 80 Ohms 2-SMD, No Lead
Datasheet
XRCHA20M000F0A01R0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr Murata Electronics
Series XRCHA
Package Tape & Reel
Type MHz Crystal
Frequency 20 MHz
Frequency Stability ±100ppm
Frequency Tolerance ±100ppm
Load Capacitance 8pF
ESR (Equivalent Series Resistance) 80 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 125°C
Ratings AEC-Q200
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.031" (0.80mm)
Base Product Number XRCHA
Standard Package 3,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 1336997-XRCHA20M000F0A01R0
Ultra Librarian 3D Model Ultra Librarian XRCHA20M000F0A01R0 CAD Model

Description

The XRCHA20M000F0A01R0 is a MHz Crystal from the XRCHA series.

  • Series: XRCHA
  • Package: Tape & Reel
  • Standard Package: 3,000
  • Size/Dimension: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Height - Seated (Max): 0.031" (0.80mm)
  • Frequency: 20 MHz
  • ESR (Equivalent Series Resistance): 80 Ohms
  • Frequency Stability: ±100ppm
  • Frequency Tolerance: ±100ppm
  • Load Capacitance: 8pF
  • Operating Mode: Fundamental
  • Mounting Type: Surface Mount
  • Package/Case: 2-SMD, No Lead
  • Temperature Range - Operating: -40°C ~ 125°C
