Same model may have multiple batches, images only for reference.

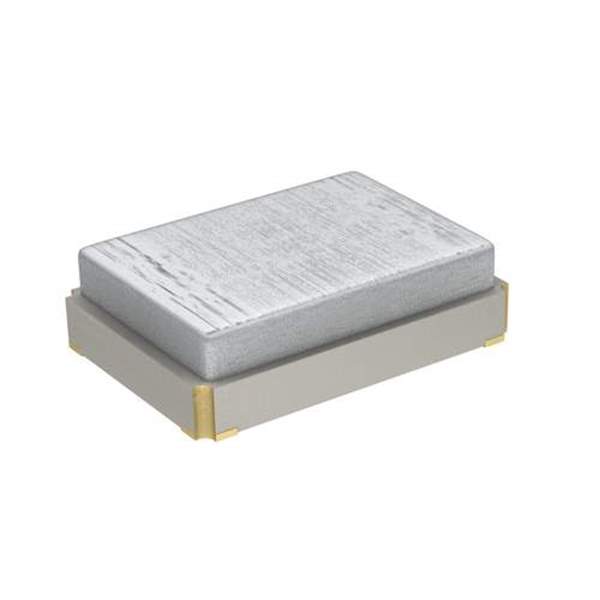

XRCGB40M000F1S2AR0 Real Image
Same model may have multiple batches, images only for reference.

XRCGB40M000F1S2AR0

Part No XRCGB40M000F1S2AR0
Manufacturer Murata Electronics North America
Catalog Crystals
Description 2.0X1.6MM 40.0MHZ CRYSTAL UNIT + / 40 MHz ±10ppm Crystal 12pF 50 Ohms 4-SMD, No Lead
Datasheet
XRCGB40M000F1S2AR0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Murata Electronics
Series XRCGB
Package Tape & Reel
Type MHz Crystal
Frequency 40 MHz
Frequency Stability ±10ppm
Frequency Tolerance ±10ppm
Load Capacitance 12pF
ESR (Equivalent Series Resistance) 50 Ohms
Operating Mode Fundamental
Temperature Range - Operating -30°C ~ 85°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.028" (0.70mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0060
Other Names 490-XRCGB40M000F1S2AR0CT,490-XRCGB40M000F1S2AR0DKR,490-XRCGB40M000F1S2AR0TR
Standard Package 3,000
Win Source Part Number 1204918-XRCGB40M000F1S2AR0
Ultra Librarian 3D Model Ultra Librarian XRCGB40M000F1S2AR0 CAD Model

Description

The XRCGB40M000F1S2AR0 is a 40 MHz crystal oscillator from the XRCGB series manufactured by Murata Electronics.

  • Series: XRCGB
  • Frequency: 40 MHz
  • Frequency Stability: ±10ppm
  • Frequency Tolerance: ±10ppm
  • Load Capacitance: 12pF
  • ESR: 50 Ohms
  • Packaging: Tape and Reel
  • Standard Package: 3,000
  • Mounting: Surface Mount Device (SMD)
  • Lead-Free: Yes
  • Height: 0.028 inches (0.70mm)
  • Frequency Mode: Fundamental
  • Temperature Range: -30°C to 85°C
  • Dimension: 0.079 inches L x 0.063 inches W (2.00mm x 1.60mm)
