Same model may have multiple batches, images only for reference.

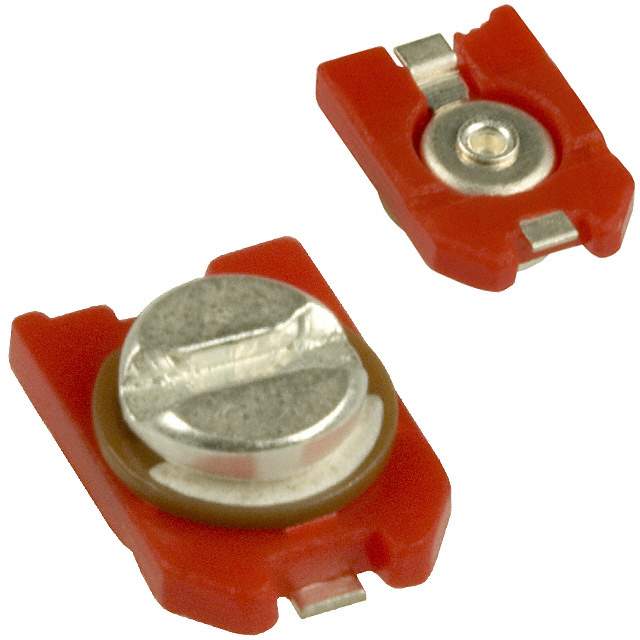

TZC3P200A110B00 Real Image
Same model may have multiple batches, images only for reference.

TZC3P200A110B00

Part No TZC3P200A110B00
Manufacturer Murata Electronics North America
Catalog Trimmers, Variable Capacitors
Description CAP TRIMMER 5-20PF 100V SMD / 5 ~ 20pF Trimmer Capacitor 100 V Top Surface Mount
Datasheet
TZC3P200A110B00 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Trimmers, Variable Capacitors
Mfr Murata Electronics
Series TZC3
Package Bulk
Product Status Obsolete
Capacitance Range 5 ~ 20pF
Adjustment Type Top
Voltage - Rated 100 V
Dielectric Material Ceramic
Q @ Freq 300 @ 1MHz
Dimension 0.177" L x 0.157" W (4.50mm x 4.00mm)
Height - Seated (Max) 0.067" (1.70mm)
Temperature Range - Operating -25°C ~ 85°C
Mounting SMD (SMT)
Features General Purpose
Base Product Number TZC3P200
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.30.0010
Other Names 490-7154,TZC3P200A110B00-ND
Standard Package 500
Win Source Part Number 1101728-TZC3P200A110B00
Ultra Librarian 3D Model Ultra Librarian TZC3P200A110B00 CAD Model

Description

The TZC3P200A110B00 is a variable capacitor from Murata Electronics.

  • Capacitance Range: 5 to 20 pF
  • Voltage Rating: 100 V
  • Adjustment Type: Top
  • Dielectric Material: Ceramic
  • Package: Bulk
  • Mounting Type: SMD (SMT)
  • Operating Temperature Range: -25°C to 85°C
  • Series: TZC3
