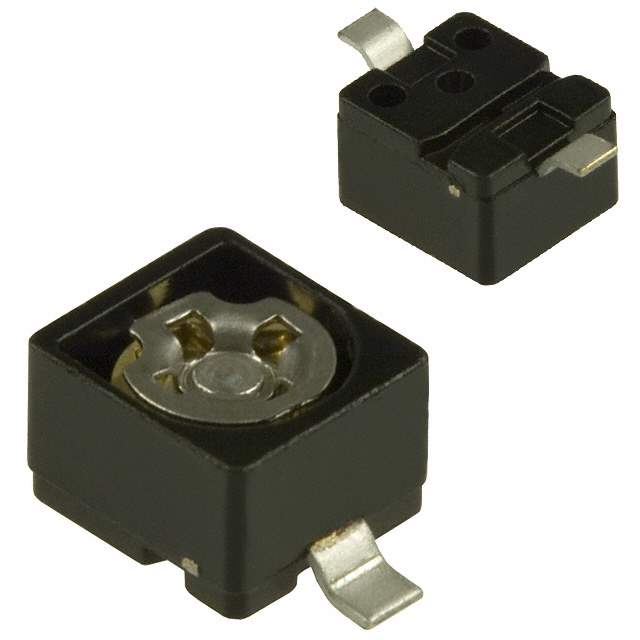

TZB4R500BA10R00 Real Image
Same model may have multiple batches, images only for reference.

TZB4R500BA10R00

Part No TZB4R500BA10R00
Manufacturer Murata Electronics North America
Catalog Trimmers, Variable Capacitors
Description CAP TRIMMER 7-50PF 50V SMD
Datasheet
TZB4R500BA10R00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Capacitance Range 7 to 50pF
Adjustment Type Top Adjustment
Voltage Rating 50V
Height - Seated (Max) 0.126" (3.20mm)
Mounting SMD (SMT)
Features General Purpose
Win Source Part Number 130706-TZB4R500BA10R00
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial
Ultra Librarian 3D Model Ultra Librarian TZB4R500BA10R00 CAD Model

Description

The TZB4R500BA10R00 is a general purpose capacitor from Murata Electronics North America. It has a voltage rating of 50V and a capacitance range of 7 to 50pF.

  • Package: The package is reel - TR.
  • Mounting: and it is SMD (SMT) mounted with top adjustment.
  • Height: The height when seated is 0.126" (3.20mm).
  • Application: This capacitor is commonly used in industrial applications.
  • Popularity: and has a medium popularity.
