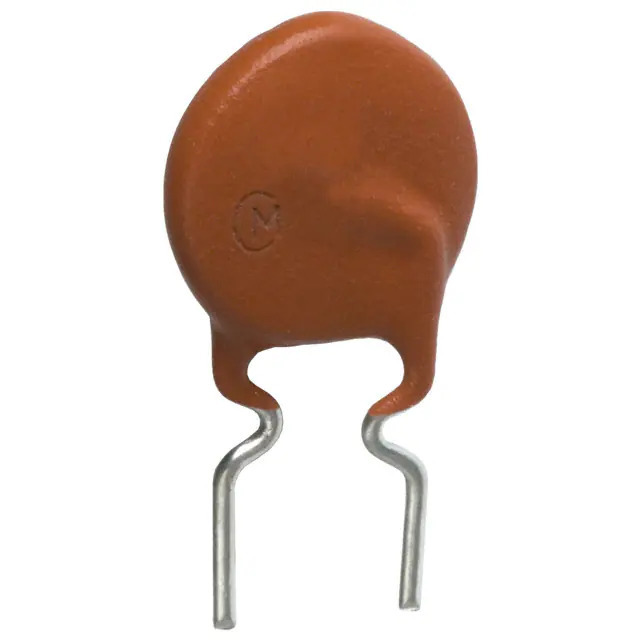

Same model may have multiple batches, images only for reference.

PTGL09AS3R3K4B51B0

Name: PTGL09AS3R3K4B51B0
Brand: Murata Electronics North America
SKU: 1361748
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PTGL09AS3R3K4B51B0
Manufacturer	Murata Electronics North America
Catalog	PTC Resettable Fuses
Description	PTC RESET FUSE 60V 421MA RADIAL / Ceramic PTC Resettable Fuse 60V 421 mA Ih Through Hole Radial, Disc
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - PTC Resettable Fuses
Mfr	Murata Electronics
Series	POSISTOR®, PTGL
Package	Bulk
Product Status	Obsolete
Type	Ceramic
Voltage - Max	60V
Current - Hold (Ih) (Max)	421 mA
Current - Trip (It)	560 mA
Current - Max	4 A
Resistance - 25°C (Typ)	3.3 Ohms
Temperature Range - Operating	-30°C ~ 85°C
Ratings	-
Mounting Type	Through Hole
Package / Case	Radial, Disc
Size / Dimension	0.366" Dia x 0.138" T (9.30mm x 3.50mm)
Height - Seated (Max)	0.563" (14.30mm)
Thickness (Max)	-
Lead Spacing	0.197" (5.00mm)
Approval Agency	UL
Base Product Number	PTGL09AS
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8533.40.8070
Win Source Part Number	1361748-PTGL09AS3R3K4B51B0
Ultra Librarian 3D Model	Ultra Librarian PTGL09AS3R3K4B51B0 CAD Model

Alternative Products

Description

The PTGL09AS3R3K4B51B0 is a PTC resettable fuse with a maximum current rating of 4A and a maximum voltage rating of 60V. It is part of the PTGL series and features a ceramic package. The fuse is designed for circuit protection and has a radial, disc package.

Temperature Range: -30°C to 85°C
Size: 0.366" Dia x 0.138" T (9.30mm x 3.50mm)
Height: 0.563" (14.30mm)
Approval: UL
