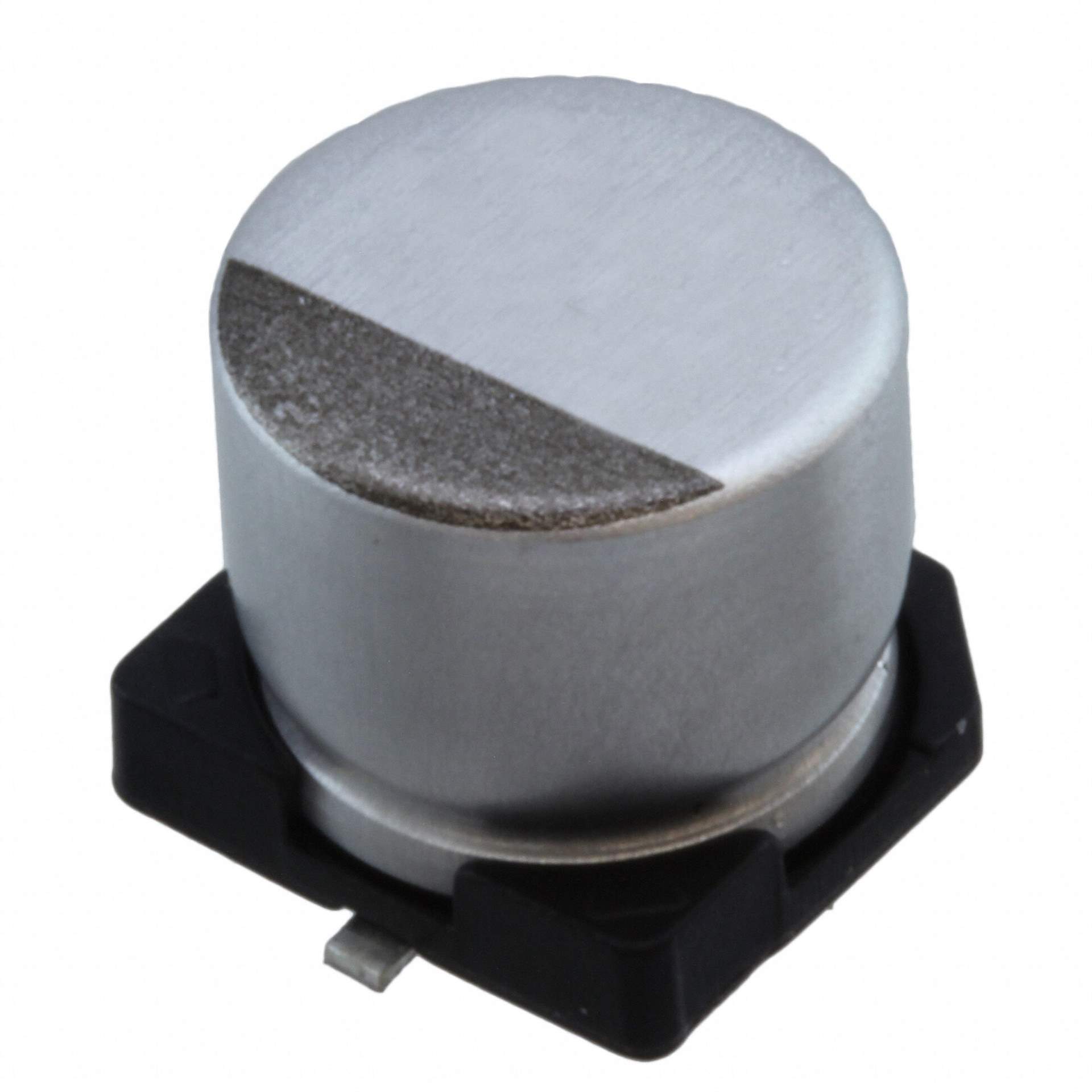

HHXB630ARA100MF61G Real Image
Same model may have multiple batches, images only for reference.

HHXB630ARA100MF61G

Part No HHXB630ARA100MF61G
Manufacturer United Chemi-Con
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY HYB 10UF 63V SMD / 10 µF 63 V Aluminum - Polymer Capacitors Radial, Can - SMD 120mOhm 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr United Chemi-Con
Series HXB
Package Tape & Reel
Product Status Not For New Designs
Type Hybrid
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) 120mOhm
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Ratings AEC-Q200
Applications Automotive
Ripple Current @ High Frequency 1 A @ 100 kHz
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1339174-HHXB630ARA100MF61G
Ultra Librarian 3D Model Ultra Librarian HHXB630ARA100MF61G CAD Model

Description

The HXB630ARA100MF61G aluminum polymer capacitor is designed for automotive applications from United Chemi-Con and belongs to the HXB series.

  • Series: HXB
  • Application: Automotive
  • Capacitance: 10 µF
  • Voltage Rating: 63 V
  • AEC-Q200: Yes
  • Tolerance: ±20%
  • ESR: 120mOhm
  • Package: Radial, Can - SMD
  • Dimension: 0.248" Dia (6.30mm)
  • Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
  • Temperature Range: -55°C ~ 105°C
  • Lifetime: 5000 Hrs @ 105°C
  • Polarization: Polarized
  • Ripple Current: 1 A @ 100 kHz
  • Packaging: Tape & Reel
  • Standard Package: 1000
