Same model may have multiple batches, images only for reference.

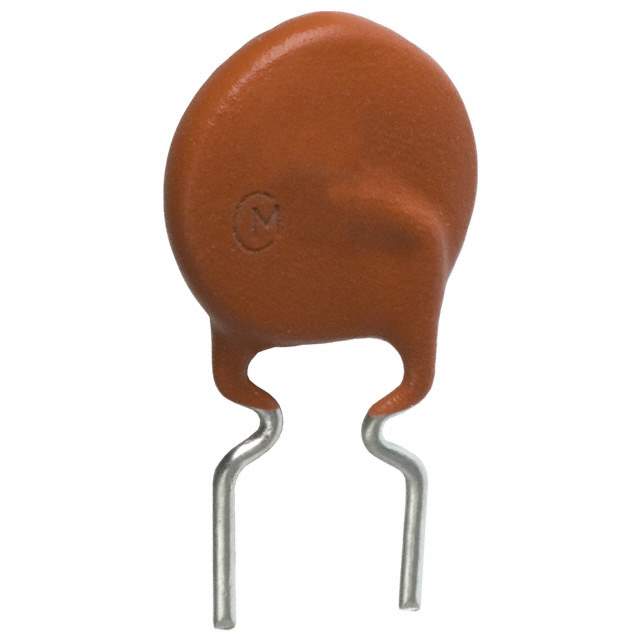

PTGL09AR390N0B52A0 Real Image
Same model may have multiple batches, images only for reference.

PTGL09AR390N0B52A0

Part No PTGL09AR390N0B52A0
Manufacturer Murata Electronics North America
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 250V 115MA RADIAL / Ceramic PTC Resettable Fuse 250V 115 mA Ih Through Hole Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr Murata Electronics
Series POSISTOR®, PTGL
Package Cut Tape (CT),Tape & Box (TB)
Product Status Obsolete
Type Ceramic
Voltage - Max 250V
Current - Max 600 mA
Current - Hold (Ih) (Max) 115 mA
Current - Trip (It) 245 mA
Resistance - 25°C (Typ) 39 Ohms
Temperature Range - Operating -10°C ~ 60°C
Mounting Type Through Hole
Package / Case Radial, Disc
Dimension 0.394" Dia x 0.236" T (10.00mm x 6.00mm)
Height - Seated (Max) 0.630" (16.00mm)
Lead Spacing 0.197" (5.00mm)
Approval Agency UL
Base Product Number PTGL09AR
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.40.8070
Other Names 490-4809-1,490-4809-3
Standard Package 1,000
Win Source Part Number 992850-PTGL09AR390N0B52A0
Ultra Librarian 3D Model Ultra Librarian PTGL09AR390N0B52A0 CAD Model

Description

The Murata Electronics PTGL09AR390N0B52A0 is a ceramic PTC resettable fuse with a resistance of 39 Ohms and a maximum voltage rating of 250V.

  • Manufacturer: Murata Electronics
  • Type: Ceramic PTC resettable fuse
  • Resistance: 39 Ohms
  • Maximum Voltage Rating: 250V
  • Maximum Current Rating: 600mA
  • Trip Current: 245mA
  • Mounting: Through hole
  • Package: Radial, disc
  • Lead Spacing: 0.197 inches
  • Height: 0.63 inches
  • Temperature Range: -10C to 60C
  • Status: Obsolete
  • RoHS Compliance: Non-compliant
