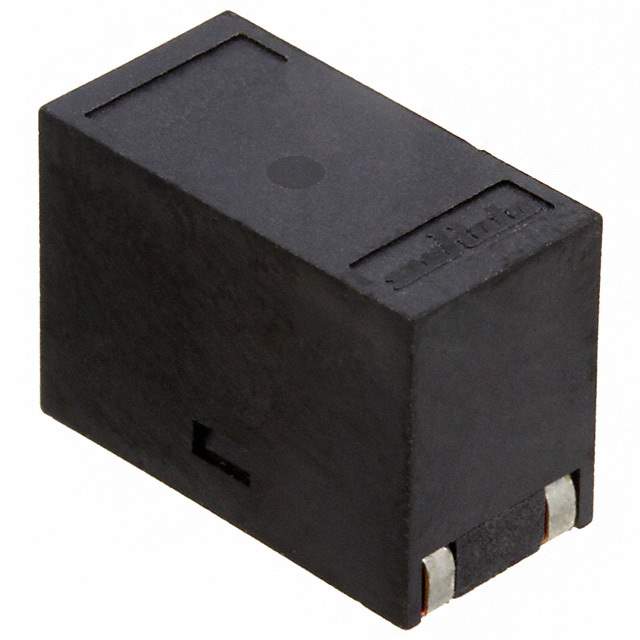

PLT10HH501100PNL Real Image
Same model may have multiple batches, images only for reference.

PLT10HH501100PNL

Part No PLT10HH501100PNL
Manufacturer Murata Electronics North America
Catalog Common Mode Chokes
Description CMC 10A 2LN 500 OHM SMD AEC-Q200 / 2 Line Common Mode Choke Surface Mount 500 Ohms @ 10 MHz 10A DCR 4.1mOhm
Datasheet
PLT10HH501100PNL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Murata Electronics
Series PLT10H
Package Tape & Reel
Filter Type Power Line
Number of Lines 2
Impedance @ Frequency 500 Ohms @ 10 MHz
Current Rating (Max) 10A
DC Resistance (DCR) (Max) 4.1mOhm
Voltage Rating - DC 100V
Temperature Range - Operating -55°C ~ 105°C
Ratings AEC-Q200
Mounting SMD (SMT)
Dimension 0.508" L x 0.358" W (12.90mm x 9.10mm)
Height (Max) 0.370" (9.40mm)
Package / Case Vertical, 4 PC Pad
Base Product Number PLT10HH
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Other Names 490-7736-2,490-7736,490-7736-1,490-7736-6,490-7736-ND
Standard Package 125
Win Source Part Number 1174333-PLT10HH501100PNL
Ultra Librarian 3D Model Ultra Librarian PLT10HH501100PNL CAD Model

Description

The PLT10HH501100PNL is a common mode choke filter designed and manufactured by Murata Electronics.

  • Function: Suppress Common Mode Noise
  • Application: Power Lines and Signal Lines
  • Feature: High Impedance @ High Frequencies
  • Ideal For: High-Speed Data Communication
  • Package: Compact SMD
  • Industries: Automotive, Industrial, and Consumer Electronics
