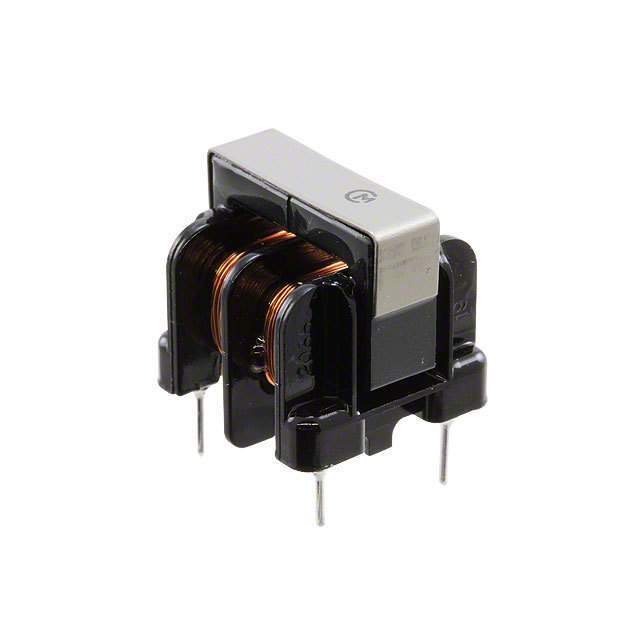

PLA10AN7420R8R2B Murata Electronics North America
Same model may have multiple batches, images only for reference.

PLA10AN7420R8R2B

Part No PLA10AN7420R8R2B
Manufacturer Murata Electronics North America
Catalog Common Mode Chokes
Description COMMON MODE CHOKE 800MA 2LN TH
Datasheet
PLA10AN7420R8R2B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Murata Electronics North America
Packaging Bulk
Filter Type Power Line
Number of Lines 2
Current Rating (Max) 800mA
DC Resistance (DCR) (Max) 640 mOhm
Voltage Rating - DC 300V
Temperature Range - Operating -25°C to 60°C
Mounting Through Hole
Height (Max) 0.689" (17.50mm)
Dimension Vertical, 4 PC Pin
Win Source Part Number 1089360-PLA10AN7420R8R2B
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PLA10AN7420R8R2B CAD Model

Description

The Murata Electronics North America PLA10AN7420R8R2B filter is a through-hole power line filter with a voltage rating of 300V and a maximum current rating of 800mA.

  • Type: Power Line Filter
  • Mounting Type: Through-Hole
  • Voltage Rating: 300V
  • Current Rating: 800mA
  • DC Resistance: 640 mOhm
  • Height: 0.689 inches
  • Temperature Range: -25°C to 60°C
  • Number of Lines: Two-Line
  • Packaging: Bulk
  • Popularity: Medium
  • Supply and Demand: Balanced
  • Fake Product Risk: High
