Same model may have multiple batches, images only for reference.

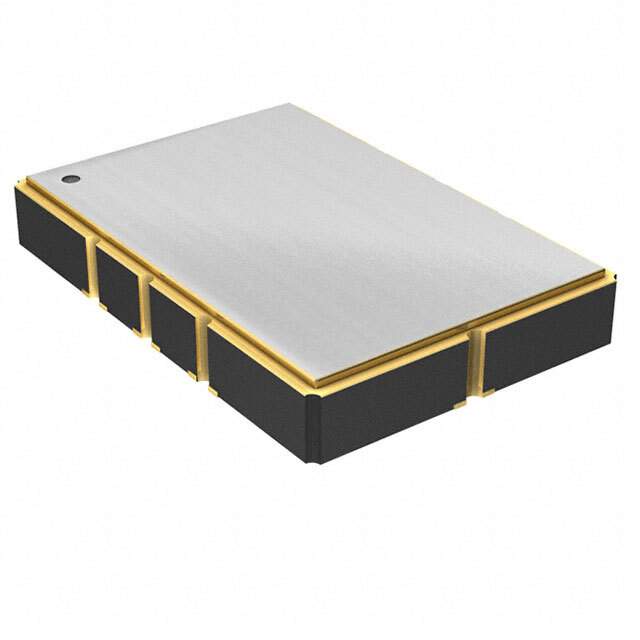

OP4005B1 Real Image
Same model may have multiple batches, images only for reference.

OP4005B1

Part No OP4005B1
Manufacturer Murata Electronics North America
Catalog Oscillators
Description OSC VCSO 622.08MHZ SMD / Oscillator VCSO 622.08MHz 55% 3.3V/5V
Datasheet
OP4005B1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer Murata Electronics North America
Packaging Reel package
Type VCSO (SAW)
Frequency 622.08MHz
Function Enable/Disable
Output Sine Wave
Operating Supply Voltage 3.13 V ~ 5.25 V
Frequency Stability ±100ppm
Operating Temperature Range -40°C ~ 85°C
Maximum Supply Current 70mA
Mounting SMD
Package 8-SMD, No Lead Exposed Pad
Dimension 0.530" L x 0.360" W (13.46mm x 9.14mm)
Height - Seated (Maximum) 0.080" (2.03mm)
Win Source Part Number 790955-OP4005B1
Popularity Medium
Supply and Demand Status Limited
Introduction Date May 12, 1998
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian OP4005B1 CAD Model

Description

The Murata Electronics North America OP4005B1 is a VCSO (SAW) oscillator.

  • Frequency: 622.08MHz
  • Operating Supply Voltage: 3.13 V ~ 5.25 V
  • Output: sine wave
  • Frequency Stability: ±100ppm
  • Supply and Demand Status: limited
