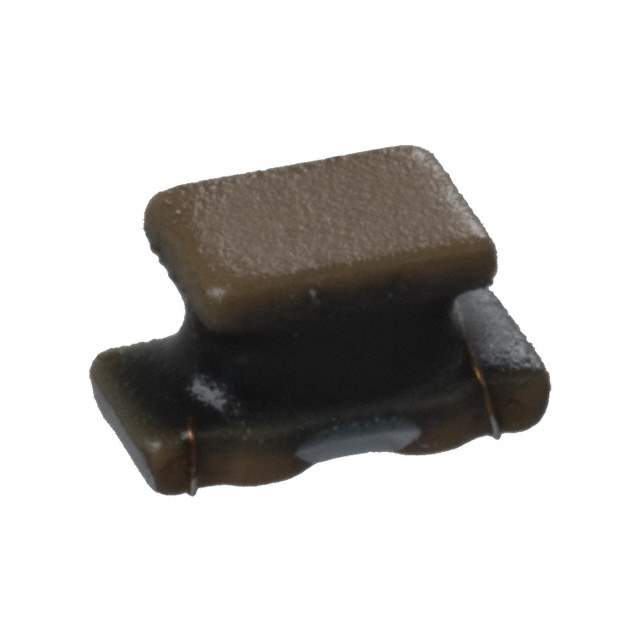

NFW31SP507X1E4L Real Image
Same model may have multiple batches, images only for reference.

NFW31SP507X1E4L

Part No NFW31SP507X1E4L
Manufacturer Murata Electronics North America
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(PI) 500MHZ SMD
Datasheet
NFW31SP507X1E4L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 3rd
Technology LC (Pi)
Number of Channels 1
Center / Cutoff Frequency 500MHz (Cutoff)
Attenuation Value 6dB @ 500MHz
Current 200mA
ESD Protection No
Temperature Range - Operating -40°C to 85°C
Applications General Purpose
Voltage Rating 25V
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height 0.079" (2.00mm)
Win Source Part Number 060184-NFW31SP507X1E4L
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian NFW31SP507X1E4L CAD Model

Description

The Murata Electronics North America 060184-NFW31SP507X1E4L is a medium popularity low pass filter that is designed to be used in various electronic applications.

  • Voltage Rating: 25V
  • Attenuation: 6dB @ 500MHz
  • Mounting Type: SMD (SMT)
  • Current: 200mA
  • Popularity: Medium
