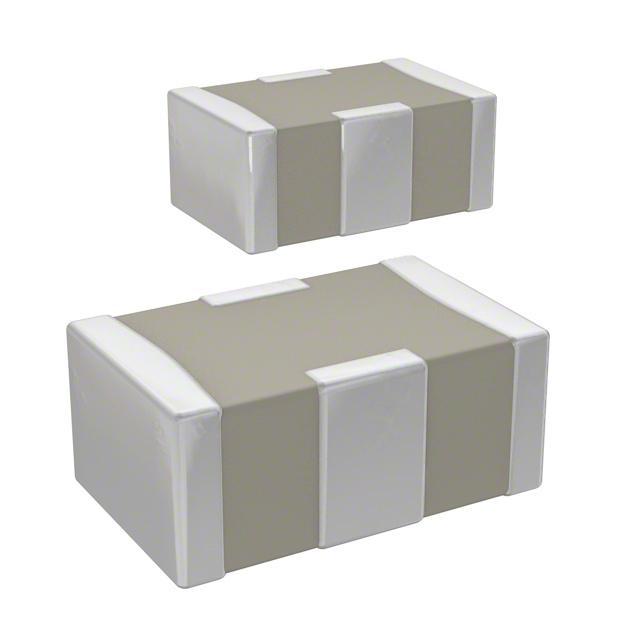

Same model may have multiple batches, images only for reference.

NFM21HC221R1H3D

Name: NFM21HC221R1H3D
Brand: Murata Electronics North America
SKU: 252536
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	NFM21HC221R1H3D
Manufacturer	Murata Electronics North America
Catalog	EMI/RFI Filters (LC, RC Networks)
Description	FILTER LC HIGH FREQ 220PF 0805
Datasheet	NFM21HC221R1H3D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters - EMI/RFI Filters (LC, RC Networks)
Mfr	Murata Electronics North America
Series	EMIFIL®, NFM21H
Package	Tape & Reel
Product Status	Active
Type	Low Pass
Filter Order	2nd
Technology	LC (T-Type)
Number of Channels	1
Current	700 mA
Values	C = 220pF
ESD Protection	No
Temperature Range - Operating	-55°C ~ 125°C
Applications	Automotive
Mounting Type	Surface Mount
Package / Case	0805 (2012 Metric)
Size / Dimension	0.079" L x 0.049" W (2.00mm x 1.25mm)
Height	0.037" (0.95mm)
Base Product Number	NFM21HC
Standard Package	4,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8548.00.0000
Win Source Part Number	252536-NFM21HC221R1H3D
Ultra Librarian 3D Model	Ultra Librarian NFM21HC221R1H3D CAD Model

Alternative Products

Description

The NFM21HC221R1H3D is a low pass EMI/RFI filter from Murata Electronics.

Series: EMIFIL series
Package Size: 0.079" L x 0.049" W (2.00mm x 1.25mm)
Designed for: Automotive applications
Current Rating: 700 mA
Mounting: Surface mount
Package: Tape & reel
Height: 0.037" (0.95mm)
Technology: LC (T-Type)
Resistance Value: 220pF
Operating Temperature: -55°C to 125°C
Status: Active
