Same model may have multiple batches, images only for reference.

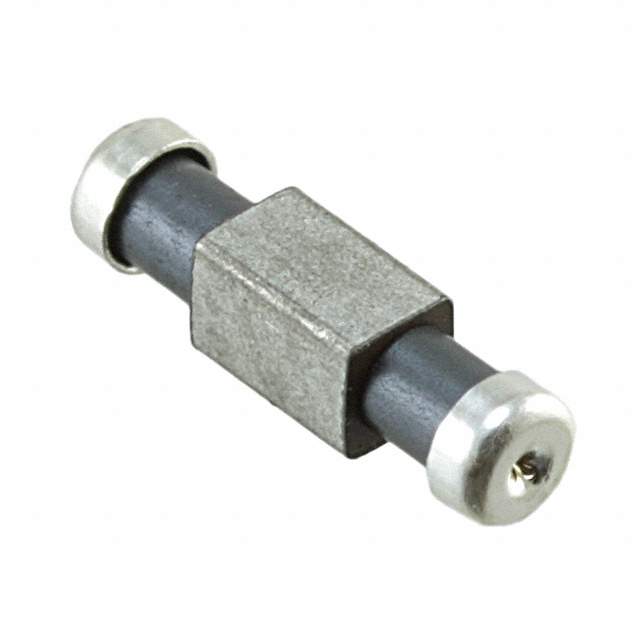

NFE61HT332Z2A9L Real Image
Same model may have multiple batches, images only for reference.

NFE61HT332Z2A9L

Part No NFE61HT332Z2A9L
Manufacturer Murata Electronics North America
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(T) 3300PF SMD / EMI Filter LC-Circuit 2A 100VDC Flat Style SMD Automotive T/R
Datasheet
NFE61HT332Z2A9L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 3rd
Technology LC (T-Type)
Number of Channels 1
Current 2A
Values C = 3300pF
ESD Protection No
Temperature Range - Operating -55°C to 125°C
Applications Automotive
Voltage Rating 100V
Mounting SMD (SMT)
Dimension 0.268" L x 0.063" W (6.80mm x 1.60mm)
Height 0.075" (1.90mm)
Win Source Part Number 025233-NFE61HT332Z2A9L
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name NFE61H
Introduction Date January 16, 2003
ECCN EAR99
Country of Origin Japan
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian NFE61HT332Z2A9L CAD Model

Description

The NFE61HT332Z2A9L is a low pass filter manufactured by Murata Electronics North America.

  • Voltage Rating: 100V
  • Current Rating: 2A
  • Applications: Automotive
  • Technology: LC (T-Type)
  • Height: 0.075" (1.90mm)
  • Mounting: SMD (SMT)
  • Filter Order: 3rd
  • Center/Cutoff Frequency: -
  • Temperature Range: -55°C to 125°C
  • Family: NFE61H
  • Status: Active
  • Estimated EOL Date: 2028
  • Halogen-Free: Compliant
  • Popularity: 89 percent
