Same model may have multiple batches, images only for reference.

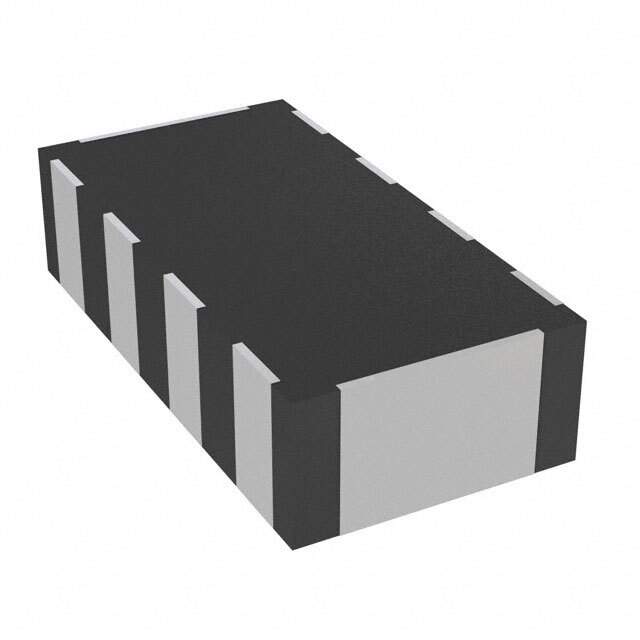

NFA31GD1001014D Real Image
Same model may have multiple batches, images only for reference.

NFA31GD1001014D

Part No NFA31GD1001014D
Manufacturer Murata Electronics North America
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC 100 OHM/10PF SMD
Datasheet
NFA31GD1001014D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Murata Electronics North America
Packaging Reel - TR
Type Low Pass
Filter Order 1st
Technology RC
Number of Channels 4
Resistance - Channel (Ohms) 100
Current 15mA
Values R = 100 Ohms, C = 10pF
ESD Protection No
Temperature Range - Operating -40°C to 85°C
Applications General Purpose
Voltage Rating 6V
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height 0.039" (1.00mm)
Win Source Part Number 025219-NFA31GD1001014D
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian NFA31GD1001014D CAD Model

Description

The NFA31GD1001014D is a Murata Electronics North America product with a medium popularity.

  • Manufacturer: Murata Electronics North America
  • Popularity: Medium
  • Application: General-purpose electronic devices
  • Type: Low pass filter
  • Voltage Rating: 6V
  • Current: 15mA
  • Channels: Four
  • Resistance: 100 Ohms
  • Mounting Type: Surface-mounted technology (SMT)
