Same model may have multiple batches, images only for reference.

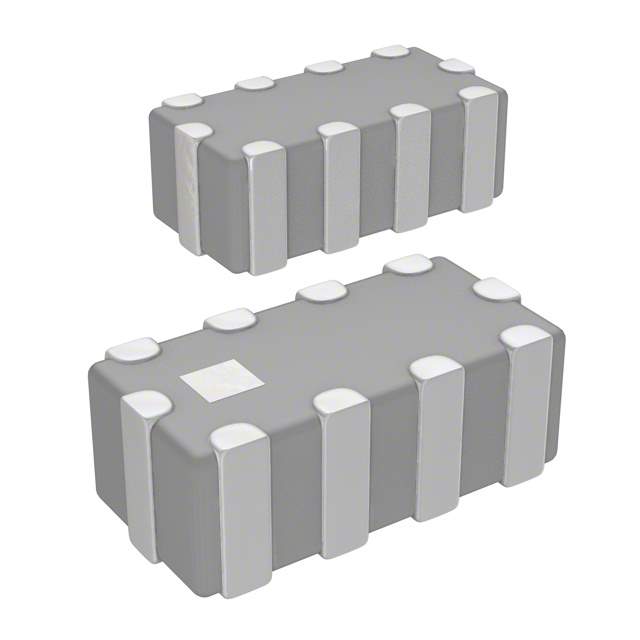

NFA18SL487V1A45 Real Image
Same model may have multiple batches, images only for reference.

NFA18SL487V1A45

Part No NFA18SL487V1A45
Manufacturer Murata Electronics North America
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC 480MHZ SMD
Datasheet
NFA18SL487V1A45 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 2nd
Technology LC
Number of Channels 4
Center / Cutoff Frequency 480MHz (Cutoff)
Attenuation Value 15dB @ 900MHz
Current 100mA
ESD Protection No
Temperature Range - Operating -55°C to 125°C
Applications General Purpose
Voltage Rating 10V
Mounting SMD (SMT)
Dimension 0.063" L x 0.032" W (1.60mm x 0.80mm)
Height 0.026" (0.65mm)
Win Source Part Number 209151-NFA18SL487V1A45
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian NFA18SL487V1A45 CAD Model

Description

The Low Pass filter is a general-purpose filter that is manufactured by Murata Electronics North America.

  • Voltage rating: 10V
  • Current rating: 100mA
  • Channels: 4
  • Attenuation value: 15dB @ 900MHz
  • This LC filter has a filter order of 2nd and a center/cutoff frequency of 480MHz.
  • The Murata Electronics North America Low Pass filter is available in SMD (SMT) mounting and has a height of 0.026" (0.65mm).
  • It is ideal for use in various applications and has a temperature range of -55°C to 125°C.
