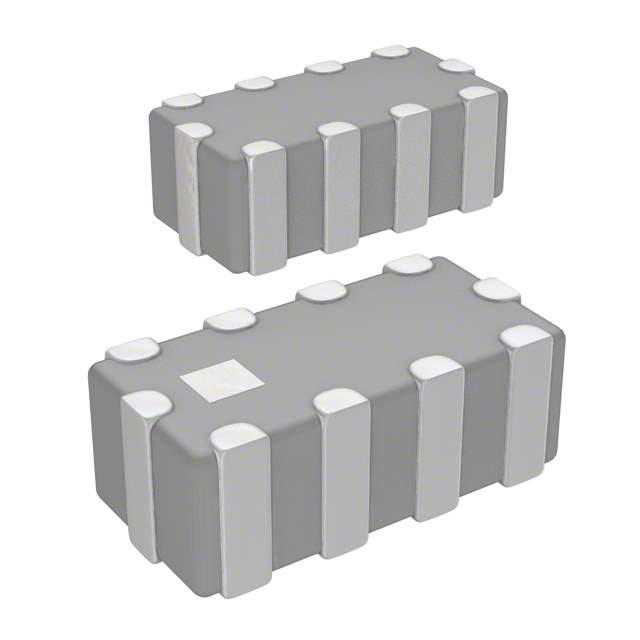

Same model may have multiple batches, images only for reference.

NFA18SL307V1A45L

Name: NFA18SL307V1A45L
Brand: Murata Electronics North America
SKU: 252284
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	NFA18SL307V1A45L
Manufacturer	Murata Electronics North America
Catalog	EMI/RFI Filters (LC, RC Networks)
Description	FILTER LC 300MHZ SMD
Datasheet	NFA18SL307V1A45L Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Filters
Manufacturer	Murata Electronics North America
Packaging	Reel - TR
Status	Active
Type	Low Pass
Filter Order	2nd
Technology	LC
Number of Channels	4
Center / Cutoff Frequency	300MHz (Cutoff)
Attenuation Value	20dB @ 900MHz
Current	100mA
ESD Protection	No
Temperature Range - Operating	-55°C to 125°C
Applications	General Purpose
Voltage Rating	10V
Mounting	SMD (SMT)
Dimension	0.063" L x 0.032" W (1.60mm x 0.80mm)
Height	0.026" (0.65mm)
Win Source Part Number	025209-NFA18SL307V1A45L
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian NFA18SL307V1A45L CAD Model

Alternative Products

Description

The NFA18SL307V1A45L is a low pass filter designed for general-purpose applications and is manufactured by Murata Electronics.

Channels: four
Attenuation value: 20dB @ 900MHz
It is ideal for use in wireless communication systems.
Filter order: 2nd
Center/cutoff frequency: 300MHz
Voltage rating: 10V
Current: up to 100mA
It is packaged in a reel and uses surface mount technology for mounting.
Operating temperature range: -55°C to 125°C
Dimension: 0.063" L x 0.032" W (1.60mm x 0.80mm)
