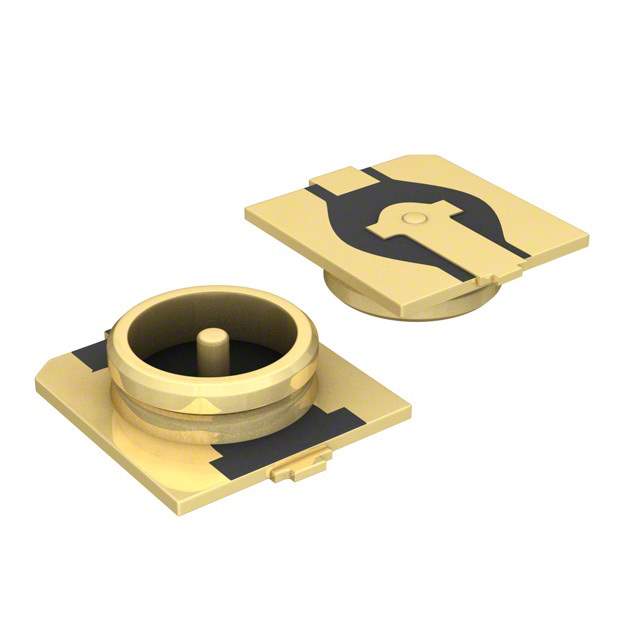

MM5829-2700RJ4

Part No MM5829-2700RJ4
Manufacturer Murata Electronics North America
Catalog Coaxial Connectors (RF)
Description CONN JSC RCPT STR 50 OHM SMD
Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Connector Style JSC
Connector Type Receptacle, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50 Ohm
Mounting SMD (SMT)
Fastening Type Snap-On
Maximum Input Frequency 12GHz
Housing Color Gold
Temperature Range - Operating -40°C to 85°C
Center Voltage Rating 30V
Win Source Part Number 023567-MM5829-2700RJ4
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MM5829-2700RJ4 CAD Model

Description

MM5829-2700RJ4 from Murata Electronics North America is a coaxial connector (RF) component intended for designs that require reliable high-frequency signal interconnection in compact electronic systems. Parts in this category are commonly evaluated for RF signal routing, test interfaces, communications hardware, industrial electronics, and embedded wireless assemblies where connector quality can affect signal integrity and serviceability. For engineers and sourcing teams, this part may be relevant when maintaining existing Murata-based designs or qualifying components for RF board-level integration. Because the exact lifecycle status for MM5829-2700RJ4 is currently unknown, procurement teams should treat long-term availability as unconfirmed and verify status directly with Murata or authorized distribution before locking it into new production. RoHS compliance information is also not available from the provided data, so environmental compliance should be confirmed through the latest manufacturer datasheet, declaration, or compliance documentation prior to release, export, or volume purchasing.
