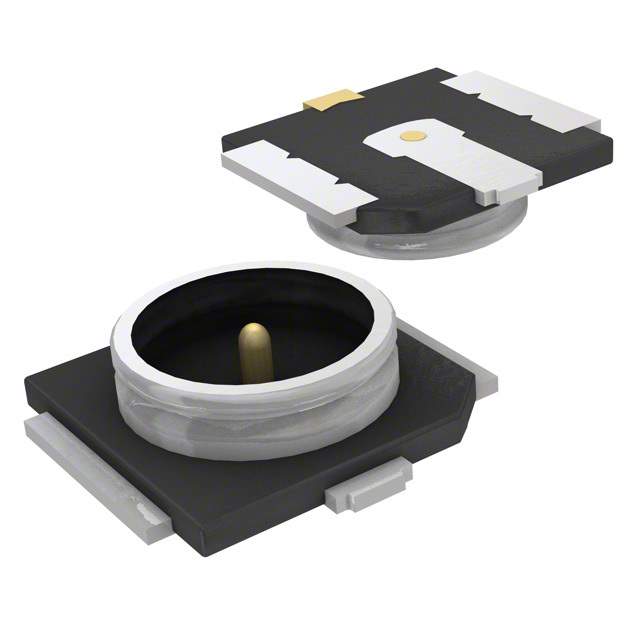

MM4829-2702RA4 Real Image MM4829-2702RA4 label picture
Same model may have multiple batches, images only for reference.
MM4829-2702RA4 Real Image MM4829-2702RA4 label picture
MM4829-2702RA4 Real Image MM4829-2702RA4 label picture
Same model may have multiple batches, images only for reference.

MM4829-2702RA4

Part No MM4829-2702RA4
Manufacturer Murata Electronics North America
Catalog Coaxial Connectors (RF)
Description CONN HSC RCPT STR 50 OHM SMD
Datasheet
MM4829-2702RA4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Connector Style HSC
Connector Type Receptacle, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50 Ohm
Mounting SMD (SMT)
Fastening Type Snap-On
Maximum Input Frequency 6GHz
Housing Color Silver
Body Material Copper Alloy
Body Finish Silver
Center Contact Plating Gold
Temperature Range - Operating -40°C to 85°C
Center Contact Material Copper Alloy
Voltage Rating 30V
Win Source Part Number 023566-MM4829-2702RA4
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian MM4829-2702RA4 CAD Model

Description

The Murata Electronics North America 023566-MM4829-2702RA4 is a female socket receptacle connector with a snap-on fastening type.

  • Connector Type: female socket receptacle
  • Fastening Type: snap-on
  • Contact Termination: solder
  • Mounting Type: SMD (SMT)
  • Voltage Rating: 30V
  • Impedance: 50 Ohm
  • Connector Style: HSC
  • Housing Color: silver
  • Body Material: copper alloy
  • Shield Termination: solder
  • Center Contact Material: copper alloy
  • Center Contact Plating: gold
  • Category: connectors and interconnects
  • Product Status: active
  • Temperature Range: -40°C to 85°C
  • Maximum Input Frequency: 6GHz
  • Supply and Demand Status: sufficient
