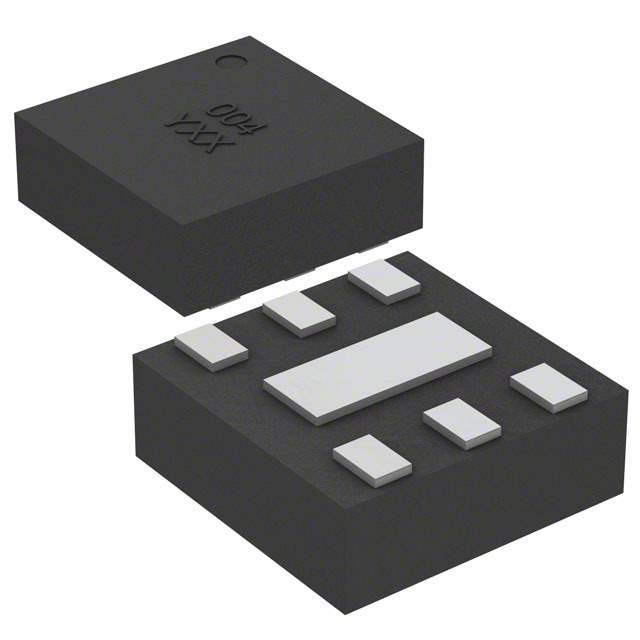

LXES1TBAA2-013 Real Image
Same model may have multiple batches, images only for reference.

LXES1TBAA2-013

Part No LXES1TBAA2-013
Manufacturer Murata Electronics North America
Catalog TVS - Diodes
Description TVS DIODE 5.5VWM SMD
Datasheet
LXES1TBAA2-013 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Obsolete(EOL)
Type Steering (Rail to Rail)
Unidirectional Channels 2
STAND-OFF Voltage (Vwm) 5.5V (Max)
Minimum Breakdown Voltage 6V
Power Line Protection Yes
Applications General Purpose
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Win Source Part Number 143395-LXES1TBAA2-013
Ultra Librarian 3D Model Ultra Librarian LXES1TBAA2-013 CAD Model

Description

The Murata Electronics North America LXES1TBAA2-013 is an obsolete component that is no longer in production.

  • Type: Steering (rail to rail)
  • Channels: 2 unidirectional
  • Applications: Power line protection, general purpose
  • Operating Temperature Range: -40°C to 85°C (TA)
  • Standoff Voltage (Vwm): 5.5V (Max)
  • Recommendation: Seek alternative components for new designs
