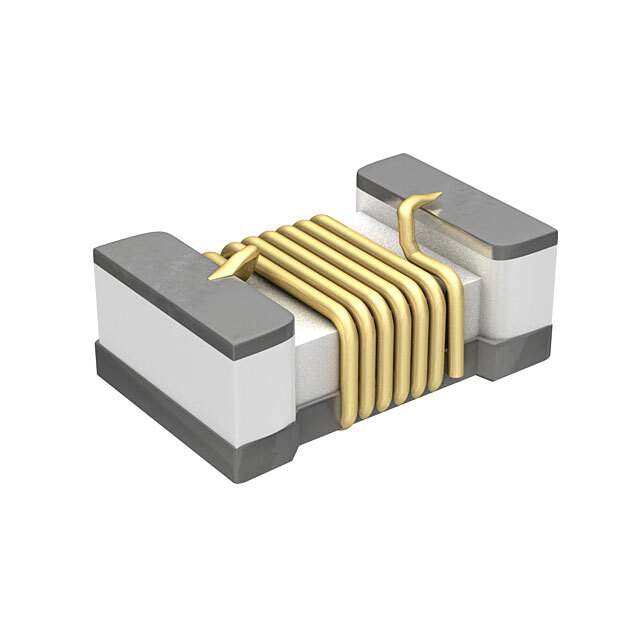

The LQW04AN6N8D00D is a high-frequency wire-wound chip inductor from Murata Electronics North America. It's designed for impedance matching, resonance circuits, and high-frequency noise suppression in various electronic devices.

Applications

• RF circuits
• Wireless communication devices (e.g., smartphones, tablets)
• Bluetooth modules
• Wi-Fi modules
• High-frequency filters

Features

• High Q factor
• Small size (0402 footprint)
• Excellent self-resonant frequency (SRF)
• Tight inductance tolerance
• Surface mount device (SMD)

Benefits

• Improved circuit performance at high frequencies
• Reduced signal loss
• Minimized noise
• Smaller PCB footprint
• Simplified manufacturing process due to SMD design

Technical Specifications

• Inductance: 6.8 nH
• Tolerance: ±0.5 nH
• Self-Resonant Frequency (SRF): 6.5 GHz (typical)
• Q Factor: 25 (typical)
• Rated Current: 300 mA
• Operating Temperature: -55°C to +125°C
• Package: 0402

The LQW04AN6N8D00D inductor is constructed with a ceramic core and a precisely wound copper wire. This construction ensures a high Q factor and excellent self-resonant frequency, essential for optimal performance in RF circuits. The small 0402 package size makes it ideal for use in densely populated PCBs. This inductor is commonly used in impedance matching networks to maximize power transfer and minimize signal reflections, thereby improving overall system performance in wireless communication devices and other high-frequency applications.
