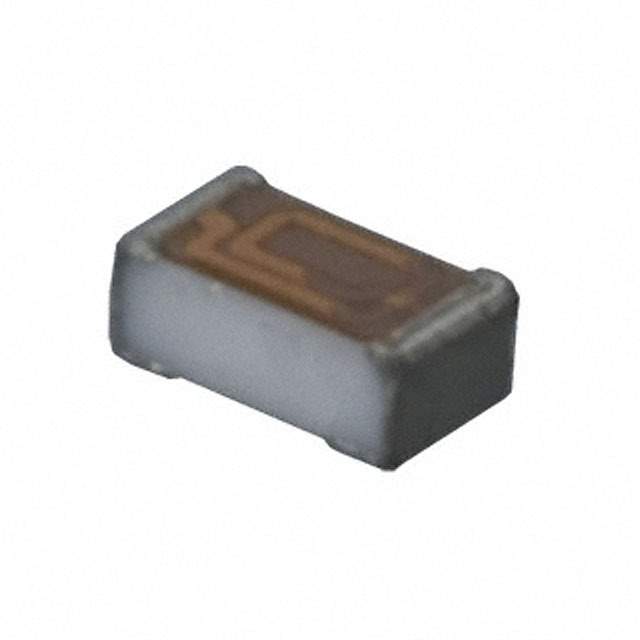

LQP15MN22NG02D Real Image
Same model may have multiple batches, images only for reference.

LQP15MN22NG02D

Part No LQP15MN22NG02D
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 22NH 70MA 2.6 OHM SMD
Datasheet
LQP15MN22NG02D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Thin Film
Material - Core Non-Magnetic
Inductance 22nH
Tolerance ±2%
Current Rating 70mA
DC Resistance (DCR) 2.6 Ohm Max
Q @ Freq 13 @ 500MHz
Frequency - Self Resonant 2.8GHz
Temperature Range - Operating -40°C to 85°C
Frequency - Test 500MHz
Mounting SMD (SMT)
Case / Package 0402 (1005 Metric)
Height - Seated (Max) 0.018" (0.45mm)
Win Source Part Number 096953-LQP15MN22NG02D
Ultra Librarian 3D Model Ultra Librarian LQP15MN22NG02D CAD Model

Description

The Murata Electronics North America 096953-LQP15MN22NG02D is a thin film inductor with the following specifications:

  • Current Rating: 70mA
  • Inductance: 22nH
  • Popularity Rating: Medium
  • Status: Active
  • Compliance: RoHS
  • Performance: Highly efficient and reliable
  • Operating Temperature Range: -40°C to 85°C
  • Package: 0402 (1005 Metric)
