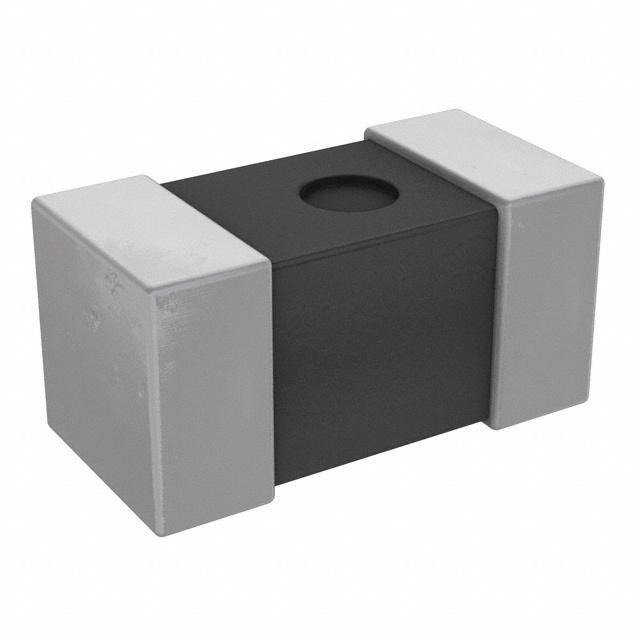

LQP03TN10NJ02D Murata Electronics North America LQP03TN10NJ02D Real Image
Same model may have multiple batches, images only for reference.
LQP03TN10NJ02D Murata Electronics North America LQP03TN10NJ02D Real Image
LQP03TN10NJ02D Murata Electronics North America LQP03TN10NJ02D Real Image
Same model may have multiple batches, images only for reference.

LQP03TN10NJ02D

Part No LQP03TN10NJ02D
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description Inductor RF Chip Unshielded Thin Film 0.01uH 5% 500MHz 14Q-Factor Non Magnetic 0.25A 0.7Ohm DCR 0201 T/R / FIXED IND 10NH 250MA 700 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Thin Film
Material - Core Non-Magnetic
Inductance 10nH
Tolerance ±5%
Current Rating 250mA
DC Resistance (DCR) 700 mOhm Max
Q @ Freq 14 @ 500MHz
Frequency - Self Resonant 3.2GHz
Temperature Range - Operating -55°C to 125°C
Frequency - Test 500MHz
Mounting SMD (SMT)
Case / Package 0201 (0603 Metric)
Height - Seated (Max) 0.013" (0.33mm)
Win Source Part Number 072071-LQP03TN10NJ02D
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name LQP03TN_02
Introduction Date January 01, 2000
ECCN EAR99
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian LQP03TN10NJ02D CAD Model

Description

The Murata Electronics North America 072071-LQP03TN10NJ02D is a high popularity electronic component that is balanced in supply and demand status. It is commonly used in various electronic devices and is categorized under inductors, coils, and chokes.
