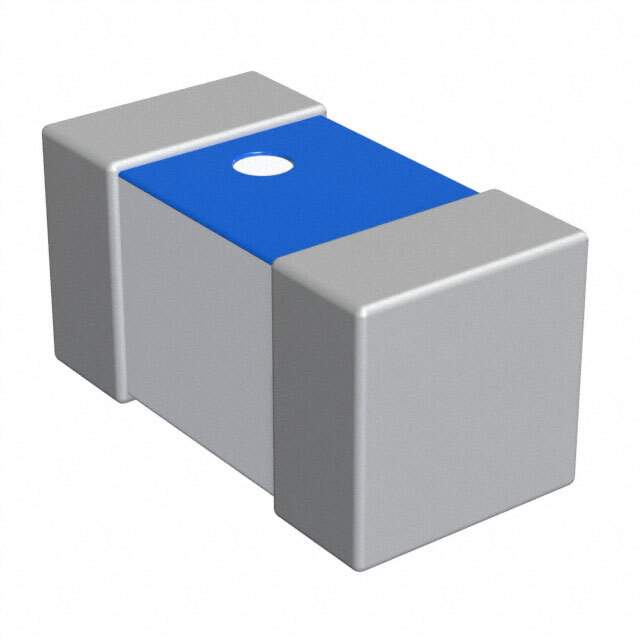

LQP03TG22NJ02D

Name: LQP03TG22NJ02D
Brand: Murata Electronics North America
SKU: 1328701
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	LQP03TG22NJ02D
Manufacturer	Murata Electronics North America
Catalog	Fixed Inductors
Description	FIXED IND 22NH 140MA 2.85OHM SMD / 22 nH Unshielded Thick Film Inductor 140 mA 2.85Ohm Max 0201 (0603 Metric)
Datasheet	LQP03TG22NJ02D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Murata Electronics
Packaging	Reel - TR
Type	Thick Film
Material - Core	Non-Magnetic
Inductance	22 nH
Tolerance	±5%
Current Rating (Amps)	140 mA
Shielding	Unshielded
DC Resistance (DCR)	2.85Ohm Max
Q @ Freq	9 @ 500MHz
Frequency - Self Resonant	2.5GHz
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	500 MHz
Mounting	Surface Mount
Case / Package	0201 (0603 Metric)
Supplier Device Package	0201 (0603 Metric)
Size / Dimension	0.024" L x 0.012" W (0.60mm x 0.30mm)
Height - Seated (Max)	0.013" (0.33mm)
Base Product Number	LQP03TG
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Other Part Number	LQP03TG22NJ02,490-12907-6,490-12907-1,490-12907-2INACTIVE,490-12907-2,LQP03TG22NJ02D-ND
Standard Package	15,000
Win Source Part Number	1328701-LQP03TG22NJ02D
Ultra Librarian 3D Model	Ultra Librarian LQP03TG22NJ02D CAD Model

Alternative Products

Description

The Murata Electronics LQP03TG22NJ02D is a fixed inductor with an inductance of 22nH and a tolerance of ±5%.

DC Resistance: 2.85Ohm max
Q Factor: 9 @ 500MHz
Mounting Type: Surface Mount
Package: 0201 (0603 Metric)
Temperature Range: -55°C to 125°C
ROHS3 Compliant: Yes
Application: Smartphones, Tablets, and Other Portable Devices
