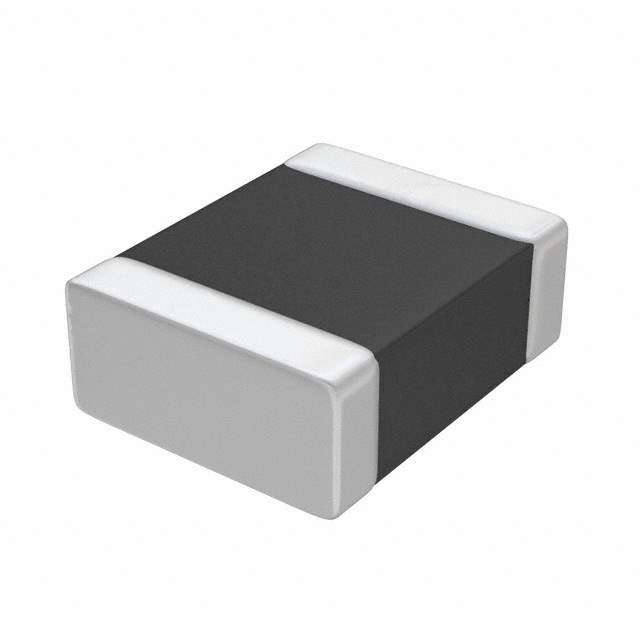

LQM2HPNR68MGHL Real Image
Same model may have multiple batches, images only for reference.

LQM2HPNR68MGHL

Part No LQM2HPNR68MGHL
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 680NH 2.3A 63 MOHM SMD / Inductor Power Chip Shielded Multi-Layer 0.68uH 20% 1MHz Ferrite 2.3A 0.063Ohm DCR 1008 Automotive T/R
Datasheet
LQM2HPNR68MGHL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Series LQM2
Packaging Reel package
Type Multilayer
Material - Core Ferrite
Inductance 680nH
Tolerance ±20%
Current Rating 2.3A
Current - Saturation 3.8A
Shielding Shielded
DC Resistance (DCR) 63 mOhm Max
Frequency - Self Resonant 60MHz
Operating Temperature Range -40°C ~ 85°C
Test Frequency 1MHz
Mounting SMD
Package 1008 (2520 Metric)
Manufacturer Package 1008 (2520 Metric)
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Maximum) 0.039" (1.00mm)
Win Source Part Number 780058-LQM2HPNR68MGHL
Popularity Medium
Supply and Demand Status Limited
Family Name LQM2HPN_GH
Introduction Date January 01, 2000
ECCN EAR99
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian LQM2HPNR68MGHL CAD Model

Description

The Murata Electronics North America 780058-LQM2HPNR68MGHL inductor is a shielded multilayer inductor.

  • Inductance: 680nH
  • Current Rating: 2.3A
  • Tolerance: ±20%
  • DC Resistance: 63 mOhm Max
  • Material: ferrite
  • Mounting: SMD
  • Packaging: reel
  • Package Size: 1008 (2520 Metric)
  • Height: 0.039" (1.00mm)
  • Dimension: 0.098" L x 0.079" W (2.50mm x 2.00mm)
