Same model may have multiple batches, images only for reference.

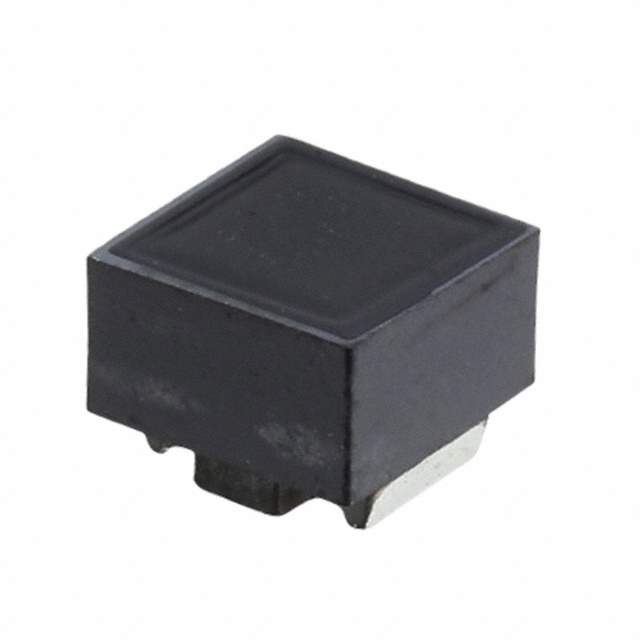

LQH66SN222M03L Real Image
Same model may have multiple batches, images only for reference.

LQH66SN222M03L

Part No LQH66SN222M03L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 2.2MH 100MA 9.4 OHM
Datasheet
LQH66SN222M03L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 2.2mH
Tolerance ±20%
Current Rating 100mA
DC Resistance (DCR) 13.16 Ohm Max
Frequency - Self Resonant 1.2MHz
Temperature Range - Operating -40°C to 80°C
Frequency - Test 10kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.197" (5.00mm)
Win Source Part Number 206649-LQH66SN222M03L
Ultra Librarian 3D Model Ultra Librarian LQH66SN222M03L CAD Model

Description

The Murata Electronics North America 206649-LQH66SN222M03L is a wirewound inductor with an inductance of 2.2mH and a current rating of 100mA. It features a ferrite core material and a self-resonant frequency of 1.2MHz. The DC resistance (DCR) is 13.16 Ohms Max. It has an SMD (SMT) mounting type with a tolerance of ±20%. The temperature range is -40°C to 80°C and it is packaged on Reel - TR. It is commonly used in Inductors, Coils, Chokes.
