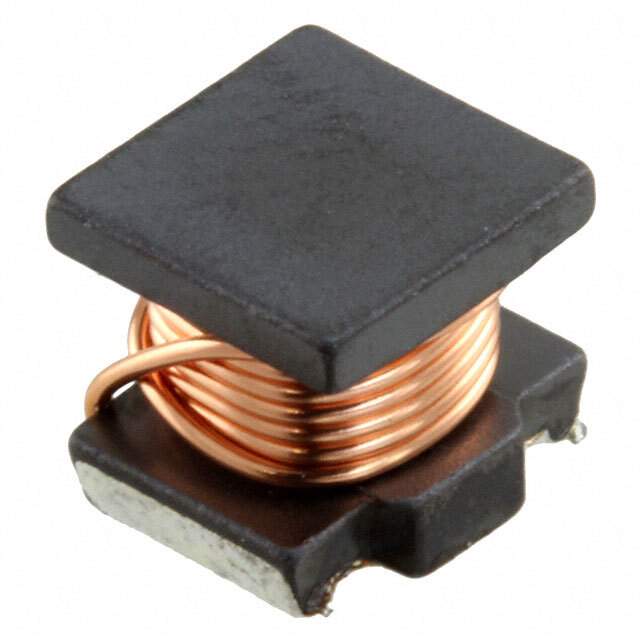

LQH55DN3R3M03L Real Image
Same model may have multiple batches, images only for reference.

LQH55DN3R3M03L

Part No LQH55DN3R3M03L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 3.3UH 2.9A 36 MOHM SMD
Datasheet
LQH55DN3R3M03L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 3.3μH
Tolerance ±20%
Current Rating 2.9A
DC Resistance (DCR) 50.4 mOhm Max
Frequency - Self Resonant 40MHz
Temperature Range - Operating -40°C to 80°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Case / Package 2220 (5650 Metric)
Height - Seated (Max) 0.197" (5.00mm)
Win Source Part Number 131327-LQH55DN3R3M03L
Ultra Librarian 3D Model Ultra Librarian LQH55DN3R3M03L CAD Model

Description

The LQH55DN3R3M03L is a wirewound type inductor manufactured by Murata Electronics North America with the following specifications:

  • Current Rating: 2.9A
  • Inductance: 3.3u00B5H
  • Core Material: Ferrite
  • Tolerance: u00B120%
  • Self-Resonant Frequency: 40MHz
  • Test Frequency: 1MHz
  • DC Resistance (DCR): 50.4 mOhm Max
  • Operating Temperature Range: -40u00B0C to 80u00B0C
  • Mounting: SMD (SMT)
  • Package Size: 2220 (5650 Metric)
  • Package: Reel - TR
  • Category: Inductors, Coils, Chokes
  • Status: Active
