Same model may have multiple batches, images only for reference.

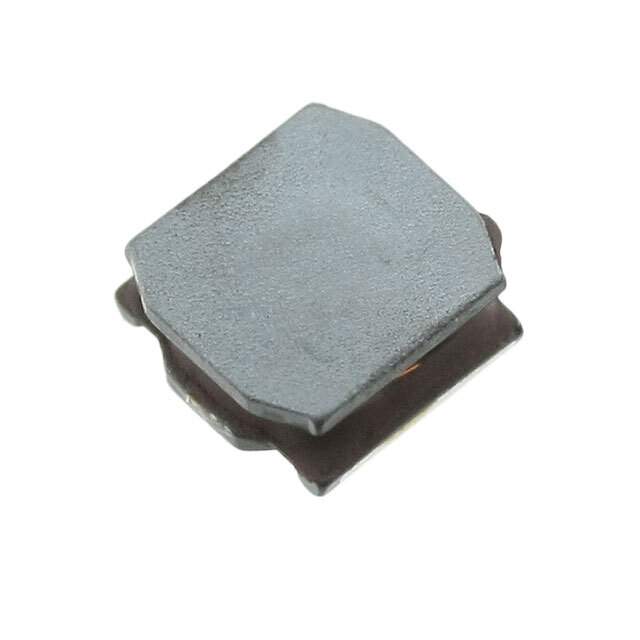

LQH44PN220MP0L Real Image
Same model may have multiple batches, images only for reference.

LQH44PN220MP0L

Part No LQH44PN220MP0L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 22UH 790MA 370 MOHM
Datasheet
LQH44PN220MP0L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 22μH
Tolerance ±20%
Current Rating 790mA
Current - Saturation 800mA
DC Resistance (DCR) 444 mOhm Max
Frequency - Self Resonant 17MHz
Temperature Range - Operating -40°C to 85°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Case / Package 1515
Height - Seated (Max) 0.071" (1.80mm)
Win Source Part Number 072039-LQH44PN220MP0L
Ultra Librarian 3D Model Ultra Librarian LQH44PN220MP0L CAD Model

Description

The Murata Electronics North America LQH44PN220MP0L is a highly reliable wirewound inductor used in electronic devices.

  • Current Rating: 790mA
  • Inductance: 22u00B5H
  • Material: Ferrite
  • Tolerance: ±20%
  • Saturation Current: 800mA
  • Self-Resonant Frequency: 17MHz
  • Test Frequency: 1MHz
  • DC Resistance (DCR): 444 mOhm Max
  • Operating Temperature Range: -40°C to 85°C
  • Height Seated (Max): 0.071" (1.80mm)
  • Packaging: Reel - TR
  • Category: Inductors, Coils, Chokes
  • Status: Active
  • Popularity: Medium
