Same model may have multiple batches, images only for reference.

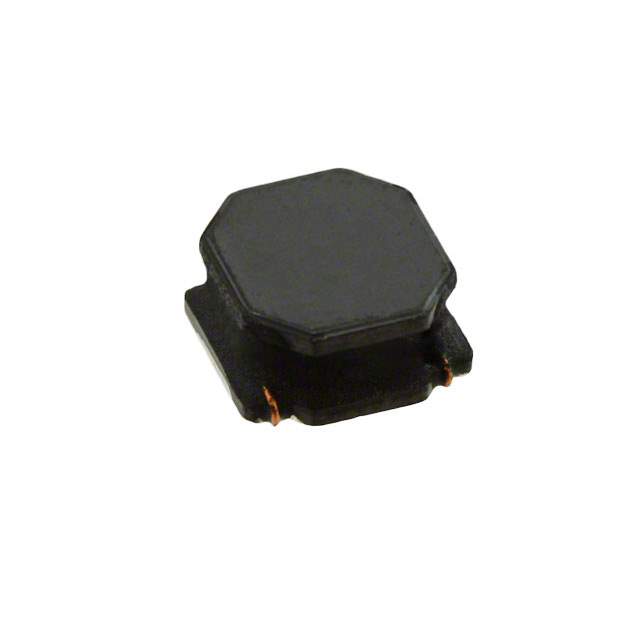

LQH44NN330K03L Real Image
Same model may have multiple batches, images only for reference.

LQH44NN330K03L

Part No LQH44NN330K03L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 33UH 760MA 273MOHM SMD / 33 µH Unshielded Drum Core, Wirewound Inductor 760 mA 273mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Murata Electronics
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 33 µH
Tolerance ±10%
Current Rating (Amps) 760 mA
Shielding Unshielded
DC Resistance (DCR) 273mOhm Max
Frequency - Self Resonant 12MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting Surface Mount
Case / Package Nonstandard
Supplier Device Package 1515 (4040 Metric)
Size / Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) 0.177" (4.50mm)
Base Product Number LQH44NN
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Standard Package 250
Win Source Part Number 1328029-LQH44NN330K03L
Ultra Librarian 3D Model Ultra Librarian LQH44NN330K03L CAD Model

Description

The Murata Electronics LQH44NN330K03L is a fixed inductor designed for surface mount applications.

  • Type: drum core, wirewound
  • Shielding: unshielded
  • Size/Dimension: 0.157" L x 0.157" W (4.00mm x 4.00mm)
  • Inductance: 33 µH
  • Tolerance: ±10%
  • Rated Current: 760 mA
  • DC Resistance: 273mOhm Max
  • Temperature Range: -40°C ~ 125°C
  • Core Material: ferrite
  • Supplier Device Package: 1515 (4040 Metric)
  • ECCN: EAR99
  • ROHS3 compliant: Yes
