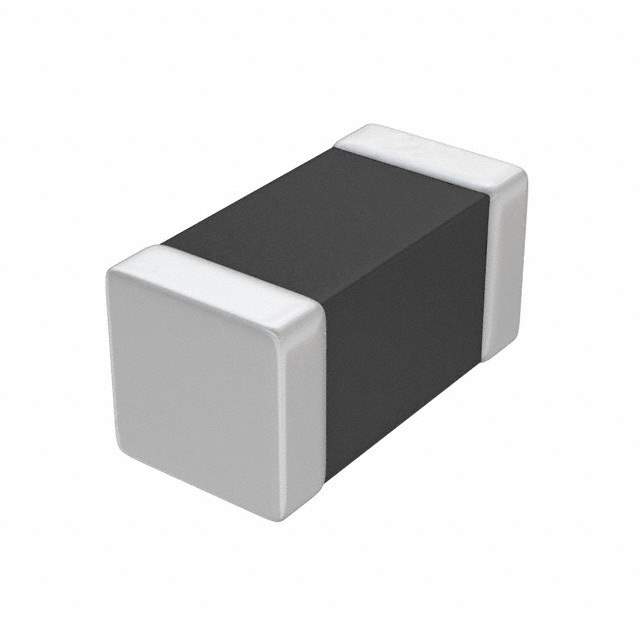

LQG18HH22NJ00D Real Image
Same model may have multiple batches, images only for reference.

LQG18HH22NJ00D

Part No LQG18HH22NJ00D
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 22NH 300MA 500MOHM SMD / 22 nH Multilayer Inductor 300 mA 500mOhm Max 0603 (1608 Metric)
Datasheet
LQG18HH22NJ00D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Murata Electronics
Series LQG18
Package Tape & Reel (TR)
Type Multilayer
Material - Core Air
Inductance 22 nH
Tolerance ±5%
Current Rating (Amps) 300 mA
DC Resistance (DCR) 500mOhm Max
Q @ Freq 12 @ 100MHz
Frequency - Self Resonant 1.6GHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 MHz
Mounting SMD (SMT)
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603 (1608 Metric)
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.037" (0.95mm)
Base Product Number LQG18HH
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Standard Package 4,000
Win Source Part Number 1134889-LQG18HH22NJ00D
Ultra Librarian 3D Model Ultra Librarian LQG18HH22NJ00D CAD Model

Description

The LQG18HH22NJ00D is a multilayer inductor, coil, choke component from Murata Electronics.

  • Win Source Part Number: 1134889
  • Packaging: Tape and Reel (TR)
  • Inductance: 22 nH
  • Height-Seated: 0.037 inches
  • Standard Package: 4,000
  • Mounting: SMD (SMT)
  • Tolerance: ±5%
  • Q@Freq: 12@100MHz
  • Frequency of Self-Resonant: 1.6GHz
  • DC Resistance (DCR): 500mOhm Max
  • Operating Temperature Range: -55°C ~ 125°C
