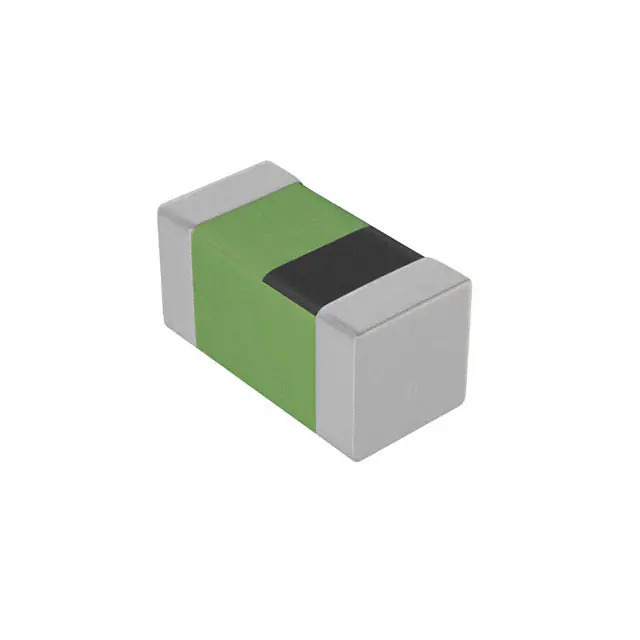

LQG15HZ56NJ02D

Name: LQG15HZ56NJ02D
Brand: Murata Electronics North America
SKU: 1369683
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	LQG15HZ56NJ02D
Manufacturer	Murata Electronics North America
Catalog	Fixed Inductors
Description	FIXED IND 56NH 250MA 820MOHM SMD
Datasheet	LQG15HZ56NJ02D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Murata Electronics
Series	LQG15
Package	Tape & Reel
Product Status	Active
Type	Multilayer
Material - Core	Air
Inductance	56 nH
Tolerance	±5%
Current Rating (Amps)	250 mA
Current - Saturation (Isat)	-
Shielding	Unshielded
DC Resistance (DCR)	820mOhm Max
Q @ Freq	8 @ 100MHz
Frequency - Self Resonant	800MHz
Ratings	AEC-Q200
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 MHz
Features	-
Mounting Type	Surface Mount
Package / Case	0402 (1005 Metric)
Supplier Device Package	0402 (1005 Metric)
Size / Dimension	0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max)	0.022" (0.55mm)
Base Product Number	LQG15HZ
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1369683-LQG15HZ56NJ02D
Ultra Librarian 3D Model	Ultra Librarian LQG15HZ56NJ02D CAD Model

Alternative Products

Description

The LQG15HZ56NJ02D is a multilayer fixed inductor from Murata Electronics.

Series: LQG15
Package Size: 0402 (1005 Metric)
Inductance: 56 nH
Current Rating: 250 mA
Tolerance: ±5%
DC Resistance: 820mOhm Max
Frequency Self-Resonant: 800MHz
Q Value: 8 @ 100MHz
Mounting Type: Surface Mount
Height: 0.022" (0.55mm)
AEC-Q200 Rated: Yes
REACH Compliance: Unaffected
Shielding: Unshielded
Core Material: Air
