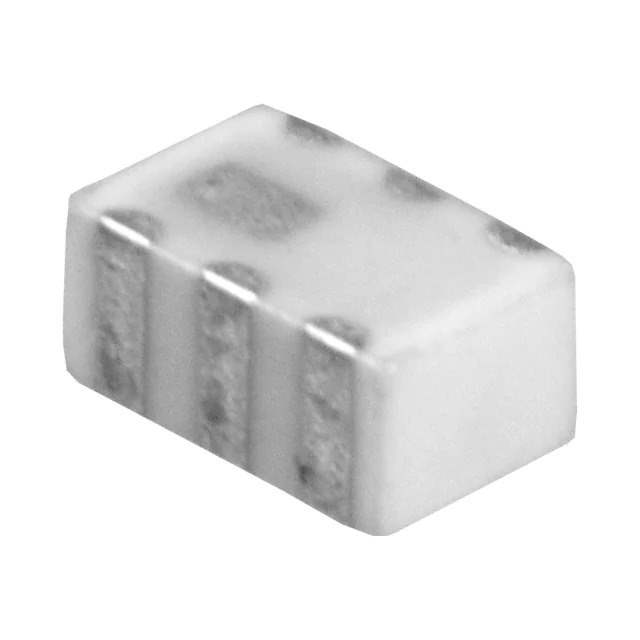

Same model may have multiple batches, images only for reference.

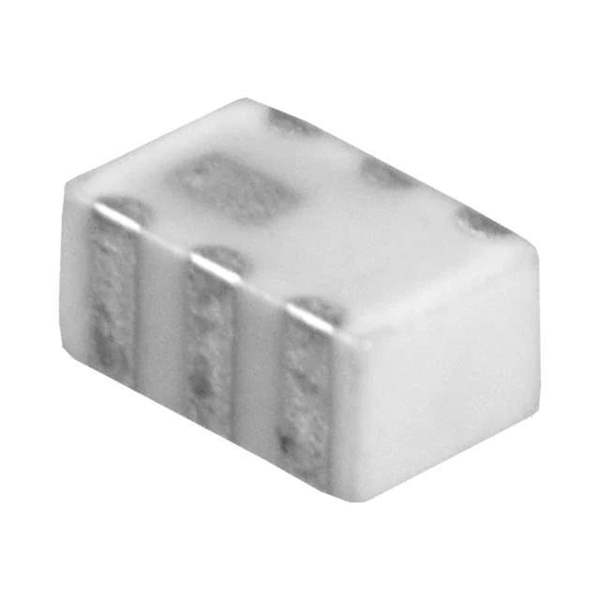

LDB212G4010C-001 Real Image
Same model may have multiple batches, images only for reference.

LDB212G4010C-001

Part No LDB212G4010C-001
Manufacturer Murata Electronics North America
Catalog Balun
Description MULTI-LAY HYBRID BALUNS 0805
Datasheet
LDB212G4010C-001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - Balun
Mfr Murata Electronics North America
Series LDB21
Package Tape & Reel
Product Status Not For New Designs
Frequency Range 2.3GHz ~ 2.5GHz
Impedance - Unbalanced/Balanced 50 / 100Ohm
Insertion Loss (Max) 1.0dB
Package / Case 0805 (2012 Metric)
Mounting Type Surface Mount
Base Product Number LDB21
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 177947-LDB212G4010C-001
Ultra Librarian 3D Model Ultra Librarian LDB212G4010C-001 CAD Model

Description

The LDB212G4010C-001 is an RF and Wireless Balun component from Murata Electronics. It is part of the LDB21 series and comes in a tape and reel package with a standard package quantity of 4,000 pieces.

  • Frequency range: 2.3GHz to 2.5GHz
  • Impedance: 50/100Ohm (unbalanced/balanced)
  • Insertion loss: maximum 1.0dB
  • Mounting type: surface mount
  • Package/case: 0805 (2012 Metric)
  • Category: RF and Wireless Balun
  • Not recommended for new designs: Yes
  • MSL level: 1 (Unlimited)
  • HTSUS code: 8504.31.2000
