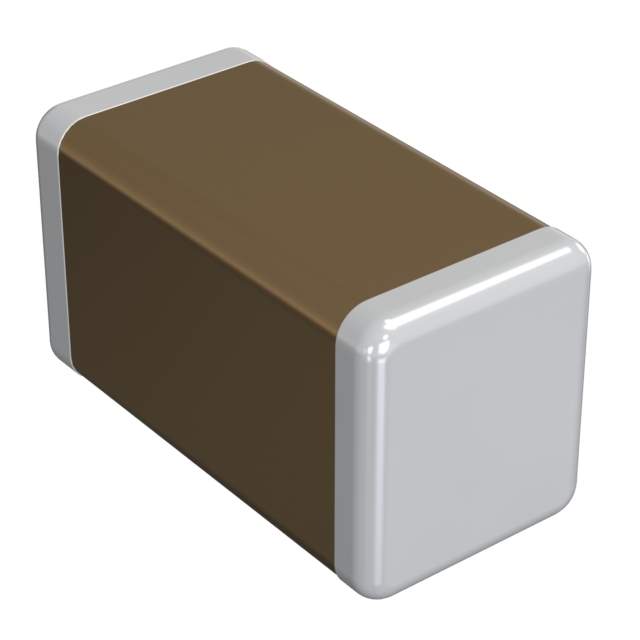

The GRM31CC80G226KE19L is a multilayer ceramic capacitor (MLCC) manufactured by Murata Electronics. This capacitor is designed for applications requiring high capacitance and low DC bias characteristics. It is commonly used for decoupling and smoothing in power circuits.

Applications

• Decoupling power rails in microcontrollers and microprocessors.
• Smoothing voltage in DC-DC converters.
• Bypassing noise in high-frequency circuits.
• Input and output capacitors in power management ICs.
• Filtering applications.

Features

• High capacitance value for effective decoupling.
• Low DC bias characteristics, maintaining capacitance under voltage.
• Small size suitable for high-density mounting.
• Excellent high-frequency characteristics.
• RoHS compliant.
• Suitable for reflow soldering processes.

Benefits

• Improved power supply stability and reduced noise.
• Effective decoupling of power rails in digital circuits.
• Compact design allows for miniaturization of electronic devices.
• Reliable performance at high frequencies.
• Environmentally friendly due to RoHS compliance.
• Easy integration into automated manufacturing processes.
• Stable performance under varying voltage conditions.

Additional Details

The GRM31CC80G226KE19L has a capacitance of 22 µF with a tolerance of ±10%. It has a voltage rating of 4 VDC. The dielectric material is X6S, known for its good DC bias characteristics. The case size is 1206 (3.2 mm x 1.6 mm). This capacitor is surface mount technology (SMT) compatible and is widely used in portable electronic devices and other applications where space is a constraint.
