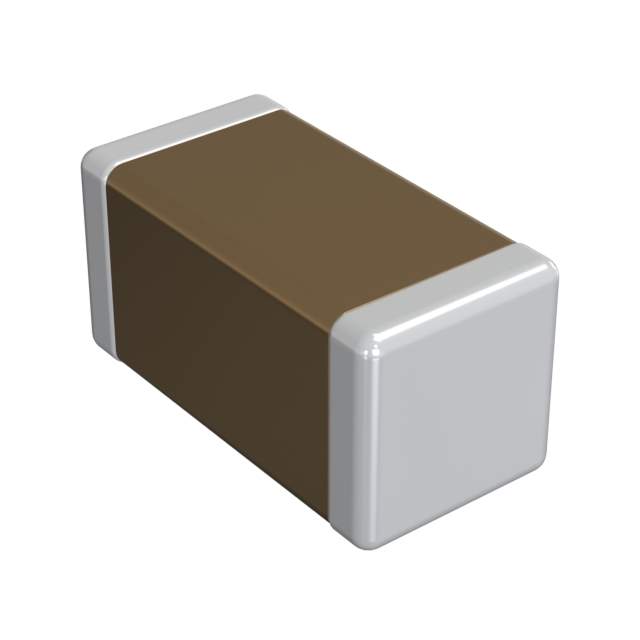

The GRM188R71H682KA01D is a multilayer ceramic capacitor (MLCC) manufactured by Murata Electronics North America. MLCCs are widely used in electronic circuits for various purposes, including decoupling, filtering, and energy storage. The GRM series is known for its reliability and performance in a wide range of applications. This specific capacitor has a capacitance of 6800pF, a voltage rating of 50V, and uses a X7R dielectric material.

Applications:

• Decoupling: Used to reduce noise on power supply lines in digital circuits.
• Filtering: Used in filters to remove unwanted frequencies from signals.
• Timing circuits: Used in oscillators and timing circuits to set the frequency.
• Bypass capacitors: Used to bypass AC signals to ground.
• Snubber circuits: Used to suppress voltage spikes in switching circuits.

Features:

• High capacitance: Provides a capacitance of 6800pF.
• Small size: Compact 0603 package size for high-density circuit boards.
• X7R dielectric: Offers stable performance over a wide temperature range.
• High voltage rating: Rated for 50V operation.
• RoHS compliant: Compliant with environmental regulations.

Benefits:

• Improved circuit performance: Reduces noise and improves signal integrity.
• Reliable operation: Provides stable performance over temperature and voltage variations.
• Compact design: Saves space on printed circuit boards (PCBs).
• Wide operating temperature range: Suitable for use in a variety of environments.
• Environmentally friendly: Complies with RoHS regulations.

The GRM188R71H682KA01D capacitor is constructed using multiple layers of ceramic material and metal electrodes. The X7R dielectric provides a balance of capacitance stability and size. Key specifications include the capacitance tolerance, temperature coefficient of capacitance (TCC), dissipation factor (DF), and insulation resistance (IR). Murata provides detailed datasheets with comprehensive electrical and mechanical specifications for this capacitor, ensuring reliable performance in demanding applications. The 0603 package is a standard size for surface mount components, making it compatible with automated assembly processes.
