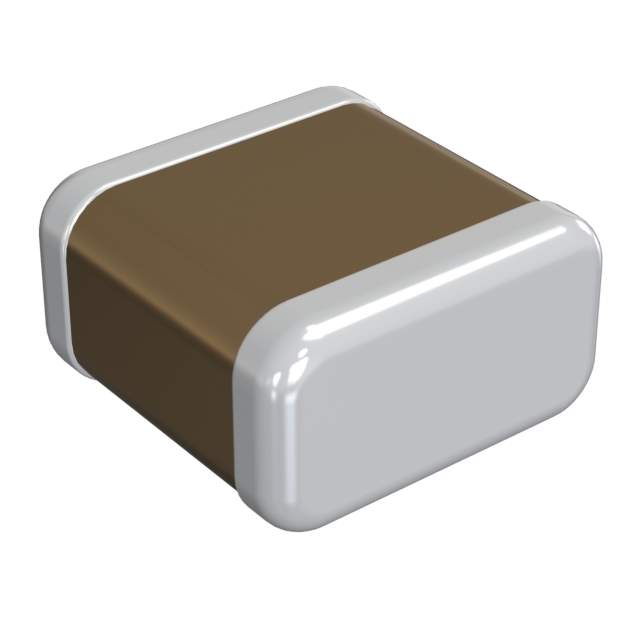

The GRM033R60J563KE19D is a multilayer ceramic capacitor (MLCC) manufactured by Murata Electronics North America. It is designed for general-purpose applications where small size and relatively high capacitance are required. The capacitor is part of the GRM series, known for its reliability and performance.

Applications

• Bypass Capacitors: Used to bypass noise and ripple in power supplies and digital circuits.
• Decoupling Capacitors: Employed to decouple ICs and other components, ensuring stable voltage levels.
• Filtering Applications: Suitable for use in low-pass and high-pass filters.
• General-Purpose Circuits: Used in a variety of general-purpose electronic circuits requiring capacitance.
• Consumer Electronics: Found in smartphones, tablets, and other consumer electronic devices.

Features

• Small Size: 0201 (0603 Metric) case size for high-density mounting.
• High Capacitance: 0.056 µF (56 nF) capacitance value.
• Voltage Rating: 6.3V voltage rating.
• Temperature Characteristics: X5R dielectric material, providing reasonable stability over temperature and voltage.
• RoHS Compliant: Compliant with RoHS environmental standards.

Benefits

• Space-Saving: The small 0201 case size allows for high-density mounting on PCBs.
• Effective Decoupling: Provides effective decoupling for integrated circuits and other components.
• Versatile Application: Suitable for a wide range of general-purpose applications.
• Environmental Compliance: Meets RoHS standards, making it suitable for environmentally conscious applications.
• Stable Performance: X5R dielectric provides reasonable capacitance stability over a wide range of conditions.

Specifications

• Capacitance: 0.056 µF (56 nF)
• Voltage Rating: 6.3 V
• Case Size: 0201 (0603 Metric)
• Dielectric Material: X5R
• Tolerance: ±10%
• Operating Temperature Range: -55°C to +85°C
• Termination: Nickel Barrier with Tin Plating
