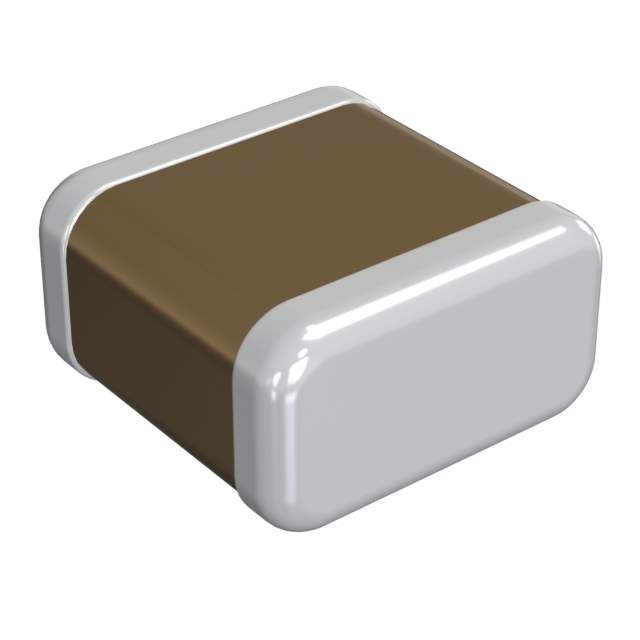

The GRM0335C1H8R0CA01D is a high-quality, small-sized ceramic capacitor produced by Murata Electronics North America. This capacitor is part of the GRM series, which is known for its reliability and excellent performance in various electronic applications. It is particularly well-suited for use in high-frequency circuits, mobile devices, and other compact electronic systems where space is a constraint.

Applications

• High-frequency circuits
• Mobile phones and other portable devices
• Decoupling and bypass applications
• Filtering applications
• General-purpose electronic circuits

Features

• Small size (0201 package)
• High Q factor
• Low equivalent series resistance (ESR)
• High reliability
• C0G (NP0) dielectric

Benefits

• Effective noise reduction in high-frequency circuits
• Improved signal integrity
• Stable performance over a wide temperature range
• Long-term operational reliability
• Minimal power loss

Additional Details

The GRM0335C1H8R0CA01D has a capacitance of 8.0 pF (picofarads) and a voltage rating of 50 VDC. The C0G (NP0) dielectric provides excellent capacitance stability with minimal change over temperature (-55°C to +125°C) and voltage. The 0201 case size corresponds to dimensions of 0.6 mm x 0.3 mm, making it ideal for densely populated circuit boards.

The high Q factor and low ESR (Equivalent Series Resistance) minimize power dissipation and ensure efficient performance in high-frequency circuits. The GRM series is manufactured to stringent quality standards, ensuring high reliability and long-term stability. It is commonly used in applications where precise and consistent performance is critical.

When using ceramic capacitors, it's essential to follow proper soldering techniques and handling procedures to avoid damage. The GRM0335C1H8R0CA01D is a robust and reliable component that can contribute to the overall performance and reliability of electronic devices. Refer to the Murata datasheet for detailed specifications and application guidelines.
