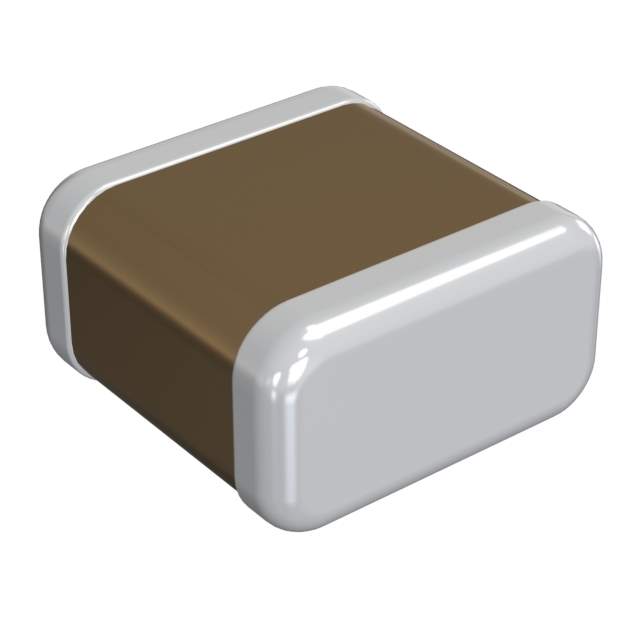

The GRM0335C1H3R3CA01D is a multilayer ceramic capacitor (MLCC) manufactured by Murata Electronics North America. It is designed for general-purpose applications in electronic circuits, offering stable performance and reliability. This capacitor is characterized by its small size and excellent high-frequency characteristics.

Applications

• Bypass capacitors
• Decoupling capacitors
• Filtering applications
• Timing circuits
• General-purpose circuit stabilization

Features

• Small Size: Compact dimensions for high-density circuit designs.
• High Capacitance Stability: Consistent performance over temperature and voltage variations.
• Low Equivalent Series Resistance (ESR): Minimizes power loss and improves circuit efficiency.
• RoHS Compliant: Environmentally friendly, free from hazardous substances.
• High Reliability: Robust construction ensures long-term performance.

Benefits

• Space Saving: Enables compact and efficient circuit layouts.
• Stable Circuit Performance: Ensures consistent operation under varying conditions.
• Improved Circuit Efficiency: Reduces power consumption and heat generation.
• Environmentally Friendly: Complies with environmental regulations.
• Long-Term Reliability: Minimizes the risk of component failure.

Additional Details

The GRM0335C1H3R3CA01D has a capacitance value of 3.3 pF (picofarads) and a voltage rating of 50V. It features a C0G (NP0) temperature characteristic, indicating a very stable capacitance over a wide temperature range. The capacitor is available in a 0201 package size. It is crucial to consult the manufacturer's datasheet for precise specifications, performance graphs, and handling precautions. The capacitor's construction involves alternating layers of ceramic dielectric and metal electrodes, creating a highly efficient energy storage device. Proper soldering techniques are essential to ensure reliable connection and prevent damage to the component during assembly.
