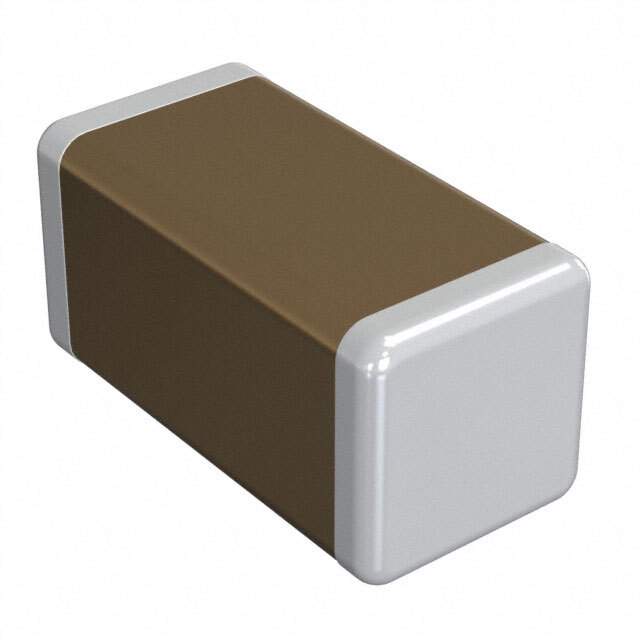

The GCJ31CR72A105KA01L is a multilayer ceramic capacitor (MLCC) manufactured by Murata Electronics North America. It's designed for general-purpose applications and is known for its reliability and stability. This capacitor is commonly used in various electronic circuits for decoupling, bypassing, and filtering purposes. Its compact size and robust construction make it suitable for high-density board designs.

Applications:

• Decoupling in Digital Circuits
• Bypassing in Analog Circuits
• Filtering in Power Supplies
• Smoothing in Audio Circuits
• General-Purpose Circuit Applications

Features:

• High Capacitance Value: 1.0 µF capacitance
• Voltage Rating: 100 VDC voltage rating
• Temperature Coefficient: X7R temperature coefficient
• Small Size: Compact size for high-density boards
• RoHS Compliant: Compliant with RoHS environmental standards

Benefits:

• Effective Decoupling: Provides effective decoupling to reduce noise and voltage fluctuations in digital circuits.
• Improved Circuit Stability: Enhances circuit stability by filtering out unwanted signals and noise.
• Compact Design: Small size allows for high-density board designs.
• Reliable Performance: Offers reliable performance in a wide range of operating conditions.
• Environmental Compliance: Complies with RoHS environmental standards, making it environmentally friendly.

Additional Details:

The GCJ31CR72A105KA01L features an X7R dielectric, providing stable performance over a wide temperature range (-55°C to +125°C). It's available in a standard EIA case size (1206). The capacitor's low ESR (Equivalent Series Resistance) contributes to its efficiency in high-frequency applications. Refer to the datasheet for detailed specifications, including tolerance, ESR, and impedance characteristics, to ensure optimal performance in your application. Proper soldering techniques are recommended to ensure reliable mounting and connection.
