Same model may have multiple batches, images only for reference.

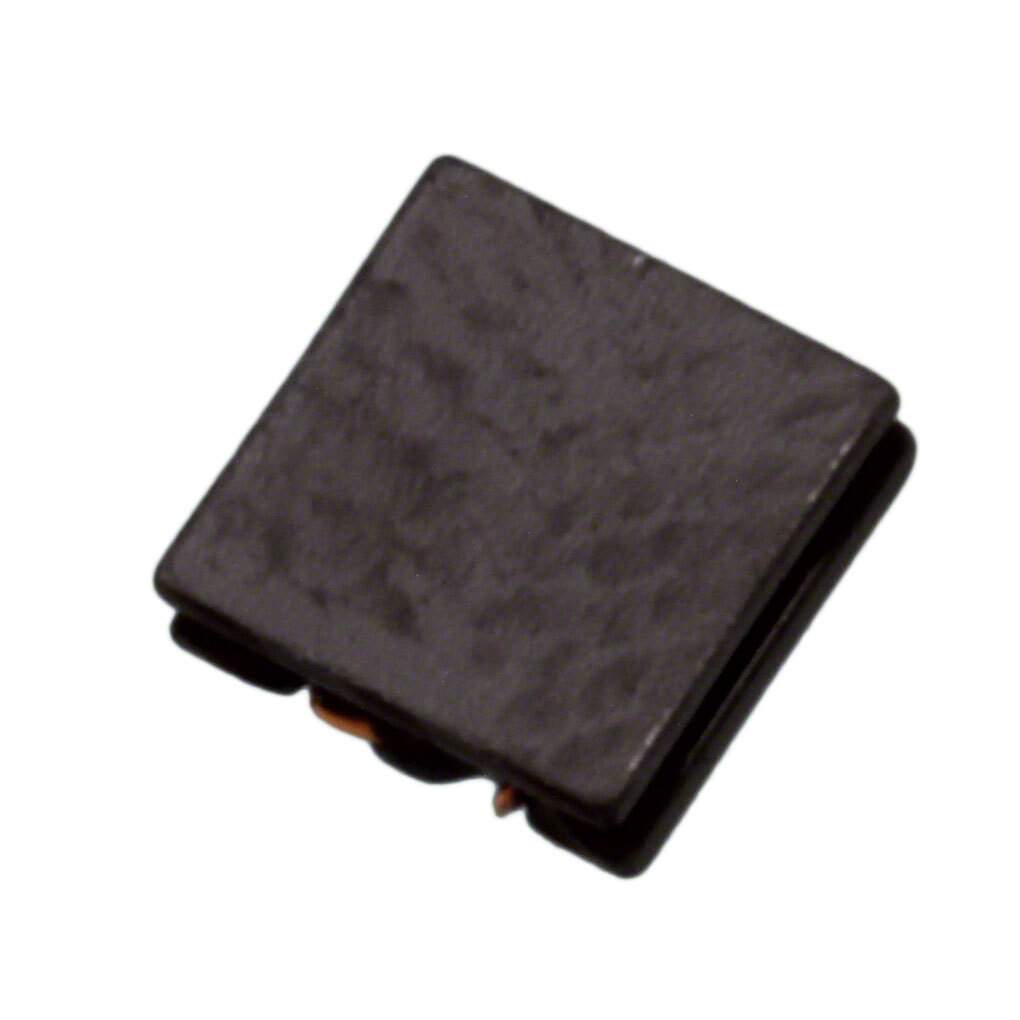

DLW44SM242SK2L Real Image
Same model may have multiple batches, images only for reference.

DLW44SM242SK2L

Part No DLW44SM242SK2L
Manufacturer Murata Electronics North America
Catalog Common Mode Chokes
Description CMC 1.4A 2LN 2.4KOHM SMD / 2 Line Common Mode Choke Surface Mount 2.4 kOhms @ 100 MHz 1.4A DCR 105mOhm
Datasheet
DLW44SM242SK2L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Murata Electronics
Series DLW44
Package Tape & Reel
Filter Type Power Line
Number of Lines 2
Impedance @ Frequency 2.4 kOhms @ 100 MHz
Current Rating (Max) 1.4A
DC Resistance (DCR) (Max) 105mOhm
Voltage Rating - DC 60V
Temperature Range - Operating -40°C ~ 105°C
Mounting Type Surface Mount
Size / Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height (Max) 0.059" (1.50mm)
Package / Case Horizontal, 4 PC Pad
Base Product Number DLW44SM
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1337700-DLW44SM242SK2L
Ultra Librarian 3D Model Ultra Librarian DLW44SM242SK2L CAD Model

Description

The DLW44SM242SK2L is a common mode choke from Murata Electronics.

  • Type: Power Line Filter
  • Maximum Voltage: 60V
  • Maximum Current: 1.4A
  • Size: 0.157" L x 0.157" W (4.00mm x 4.00mm)
  • Height: 0.059" (1.50mm)
  • Lines: Two
  • Impedance: 2.4 kOhms @ 100 MHz
  • Mounting Type: Surface Mount
  • Package: Horizontal, 4 PC Pad
  • Operating Temperature: -40°C to 105°C
