Same model may have multiple batches, images only for reference.

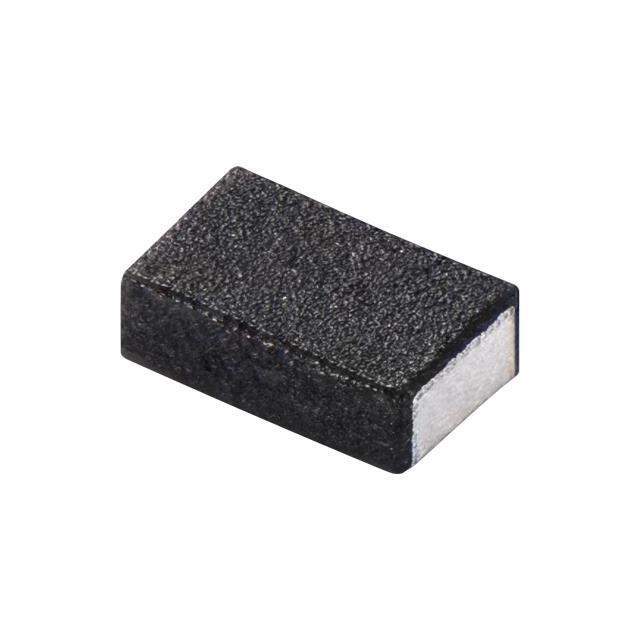

DFE21CCN2R2MELL Real Image
Same model may have multiple batches, images only for reference.

DFE21CCN2R2MELL

Part No DFE21CCN2R2MELL
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 2.2UH 2100MA NONAUTO / 2.2 µH Shielded Drum Core, Wirewound Inductor 1.8 A 138mOhm Max 0805 (2012 Metric)
Datasheet
DFE21CCN2R2MELL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Murata Electronics
Series DFE21CCN_EL
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Metal
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 1.8 A
Current - Saturation (Isat) 2.1A
Shielding Shielded
DC Resistance (DCR) 138mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Size / Dimension 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height - Seated (Max) 0.031" (0.80mm)
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1337349-DFE21CCN2R2MELL
Ultra Librarian 3D Model Ultra Librarian DFE21CCN2R2MELL CAD Model

Description

The Murata Electronics DFE21CCN_EL series fixed inductor is a drum core, wirewound type with a shielding feature.

  • Type: Wirewound
  • Material - Core: Metal
  • Inductance: 2.2 µH
  • Tolerance: ±20%
  • Current Rating (Amps): 1.8A
  • Current - Saturation (Isat): 2.1A
  • Shielding: Shielded
  • DC Resistance (DCR): 138mOhm Max
  • Q @ Freq: -
  • Frequency - Self Resonant: -
  • Operating Temperature: -40°C ~ 125°C
  • Mounting Type: Surface Mount
  • Package / Case: 0805 (2012 Metric)
  • Size / Dimension: 0.079" L x 0.047" W (2.00mm x 1.20mm)
  • Height - Seated (Max): 0.031" (0.80mm)
