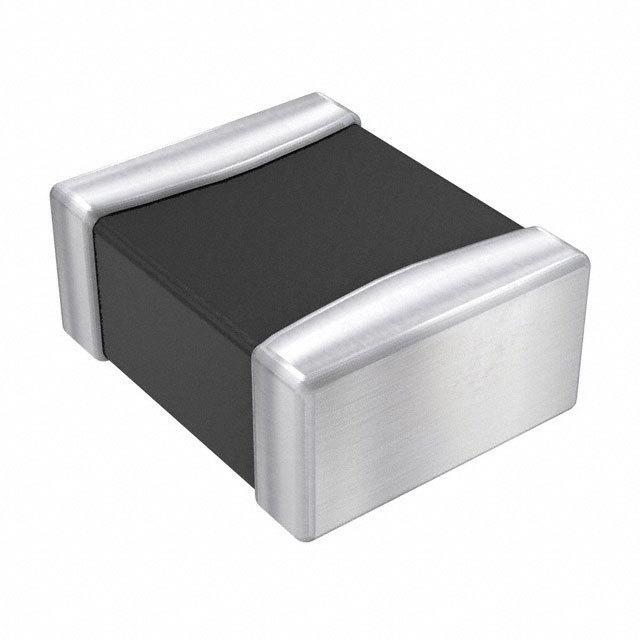

DFE201612R-H-2R2M=P2 Murata Electronics North America
Same model may have multiple batches, images only for reference.

DFE201612R-H-2R2M=P2

Part No DFE201612R-H-2R2M=P2
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 2.2UH 1.4A 154 MOHM / Inductor Power Shielded Wirewound 2.2uH 20% 1MHz Metal 1.4A 0.154Ohm DCR 0806 T/R
Datasheet
DFE201612R-H-2R2M=P2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Series DFE201612R
Packaging Reel package
Type Wirewound
Material - Core Powdered Iron
Inductance 2.2μH
Tolerance ±20%
Current Rating 1.4A
Current - Saturation 1.7A
Shielding Shielded
DC Resistance (DCR) 154 mOhm Max
Operating Temperature Range -40°C ~ 85°C
Test Frequency 1MHz
Mounting SMD
Package 0806 (2016 Metric)
Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Maximum) 0.039" (1.00mm)
Win Source Part Number 772600-DFE201612R-H-2R2M=P2
Popularity Medium
Supply and Demand Status Balance
Family Name DFE201612R
Introduction Date January 01, 2000
ECCN EAR99
Estimated EOL Date 2020
Ultra Librarian 3D Model Ultra Librarian DFE201612R-H-2R2M=P2 CAD Model

Description

The Murata Electronics North America DFE201612R-H-2R2M=P2 is a wirewound type inductor with an inductance of 2.2μH and a current rating of 1.4A.

  • Inductance: 2.2μH
  • Current Rating: 1.4A
  • Tolerance: ±20%
  • Shielding: Yes
  • Package: 0806 (2016 Metric)
  • Mounting: Surface Mount
  • Operating Temperature Range: -40°C to 85°C
