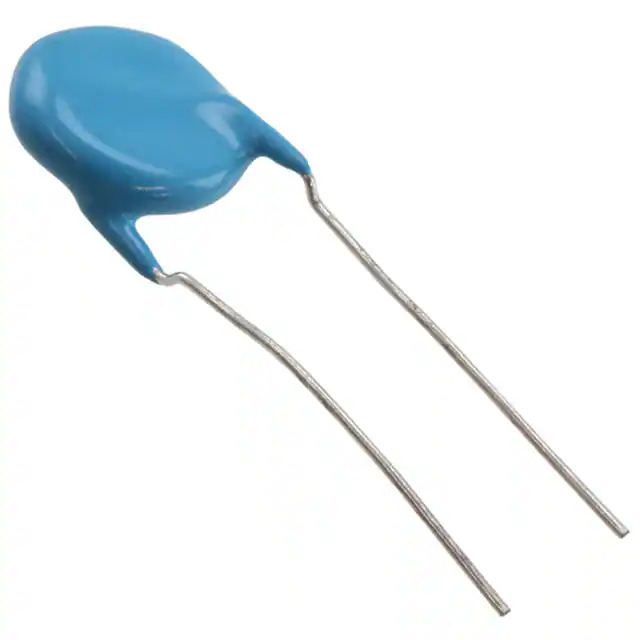

Same model may have multiple batches, images only for reference.
DE2E3SA472MN3AX02F Murata Electronics North America
Same model may have multiple batches, images only for reference.

DE2E3SA472MN3AX02F

Part No DE2E3SA472MN3AX02F
Manufacturer Murata Electronics North America
Catalog Ceramic Capacitors
Description CAP CER / 4700 pF ±20% 300V Ceramic Capacitor E Radial, Disc
Datasheet
DE2E3SA472MN3AX02F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr Murata Electronics
Series DE2
Product Status Active
Capacitance 4700 pF
Tolerance ±20%
Voltage - Rated 300V
Temperature Coefficient E
Temperature Range - Operating -40°C ~ 125°C
Features -
Ratings X1, Y2
Applications Safety
Failure Rate -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.197" (5.00mm)
Thickness (Max) -
Lead Spacing 0.295" (7.50mm)
Lead Style Straight
Base Product Number DE2E3SA
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.23.0060
Win Source Part Number 1360506-DE2E3SA472MN3AX02F
Ultra Librarian 3D Model Ultra Librarian DE2E3SA472MN3AX02F CAD Model

Description

The Murata Electronics DE2E3SA472MN3AX02F is a ceramic capacitor with a capacitance of 4700 pF and a voltage rating of 300V. Bold the product name Murata Electronics DE2E3SA472MN3AX02F and manufacturer Murata Electronics.

  • Series: DE2
  • Capacitance: 4700 pF
  • Voltage Rating: 300V
  • Package: Radial, Disc
  • Application: Safety
  • Lead Spacing: 0.295" (7.50mm)
  • Diameter: 0.394" (10.00mm)
  • Seated Height: 0.197" (5.00mm) (Max)
  • Rating: X1, Y2
  • Temperature Range: -40°C to 125°C
