Same model may have multiple batches, images only for reference.

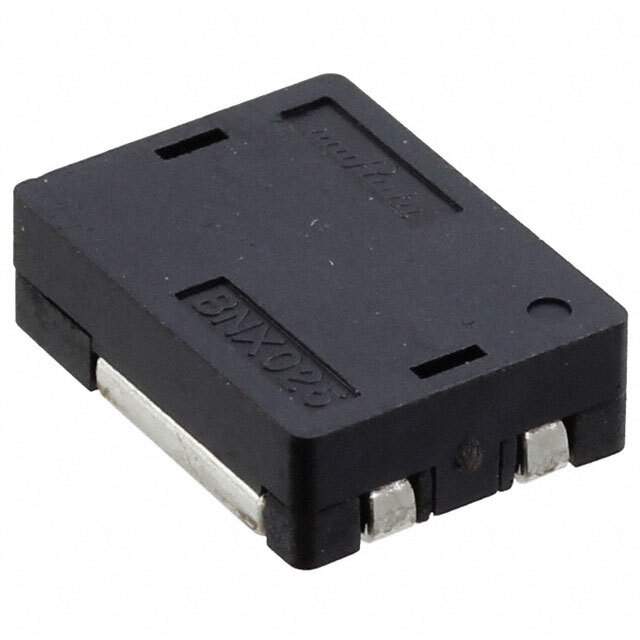

BNX025H01L

Name: BNX025H01L
Brand: Murata Electronics North America
SKU: 438424
Availability: InStock
Rating: 4.85 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	BNX025H01L
Manufacturer	Murata Electronics North America
Catalog	EMI/RFI Filters (LC, RC Networks)
Description	FILTER LC 10UF SMD
Datasheet	BNX025H01L Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Filters
Manufacturer	Murata Electronics North America
Packaging	Reel - TR
Status	Active
Type	Low Pass
Filter Order	5th
Technology	LC
Number of Channels	2
Attenuation Value	35dB @ 50kHz to 1GHz
Resistance - Channel (Ohms)	0.00043
Current	15A
Values	C = 10μF
ESD Protection	No
Temperature Range - Operating	-55°C to 125°C
Applications	Automotive
Voltage Rating	25V
Mounting	SMD (SMT)
Dimension	0.476" L x 0.358" W (12.10mm x 9.10mm)
Height	0.146" (3.70mm)
Win Source Part Number	1023730-BNX025H01L
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian BNX025H01L CAD Model

Alternative Products

Description

The Murata Electronics North America BNX025H01L is a low pass filter designed for automotive applications.

Manufacturer: Murata Electronics North America
Product Name: BNX025H01L
Voltage Rating: 25V
Current: 15A
Number of Channels: 2
Filter Type: 5th order LC filter
Attenuation: 35dB from 50kHz to 1GHz
Channel Resistance: 0.00043 Ohms
Height: 0.146" (3.70mm)
Dimensions: 0.476" L x 0.358" W (12.10mm x 9.10mm)
Capacitance: 10μF
ESD Protection: No
Operating Temperature: -55°C to 125°C
